Main Control Valve Body: Installation

    NOTE: Make sure that the drive pin of the manual valve detent lever assembly engages the manual valve in the correct location prior to installing the bolts.

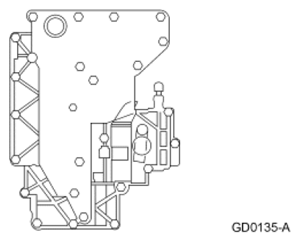

    Fig 1: Identifying Main Control Valve Body Gasket
    G06564976Courtesy of FORD MOTOR CO.
  1. Position the main control valve body gasket and main control valve body using the 2 alignment bolts as a guide.
  2. NOTE: The main control valve body bolts will be tightened in later steps.
    Fig 2: Locating Long Main Control Valve Body Bolts
    G06140490Courtesy of FORD MOTOR CO.
  3. Loosely install the 11 long main control valve body bolts.
  4. NOTE: Lubricate the EPC  solenoid O-rings with automatic transmission fluid.
    Fig 3: Locating EPC Solenoid Bracket And Bolt
    G06140121Courtesy of FORD MOTOR CO.
  5. Position the EPC  solenoid bracket and loosely install the bolt.
  6. The main control valve body bolts will be tightened in later steps.
    • Loosely install the 12 short main control valve body bolts.
      Fig 4: Locating Short Main Control Valve Body Bolts
      G06140127Courtesy of FORD MOTOR CO.
  7. Install the manual control valve detent lever spring and loosely install the bolt.
    Fig 5: Locating Manual Control Valve Detent Lever Spring And Bolt
    G06140120Courtesy of FORD MOTOR CO.
  8. Tighten the main control valve body bolts in the sequence shown in the illustration.
    • Tighten to 10 Nm (89 lb-in).

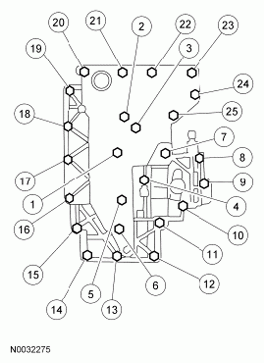

      Fig 6: Identifying Main Control Valve Body Bolts In Sequence
      G06140129Courtesy of FORD MOTOR CO.
  9. Inspect the transmission internal harness for damage.
  10. Connect the transmission internal harness to the solenoids.
    1. Connect the transmission internal harness connector by pressing it in place by hand and fully seating the connector in place.
    2. Connect the EPC  solenoid by pressing it in place by hand and fully seating the connector in place.
    3. Connect the TCC  by pressing it in place by hand and fully seating the connector in place.
    4. Connect the shift solenoid SSA  and SSB  by pressing it in place by hand and fully seating the connector in place.
    5. Connect the TFT  solenoid by pressing it in place by hand and fully seating the connector in place.
      Fig 7: Identifying Transmission Internal Harness Connector
      G06140495Courtesy of FORD MOTOR CO.
  11. Install the transmission fluid pan and transmission fluid filter. For additional information, refer to FLUID PAN, GASKET AND FILTER .
  12. WARNING: If the vehicle is equipped with a fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM . Failure to follow these instructions may result in serious personal injury.
  13. If equipped with a fire suppression system, repower the system.
