Main Control Valve Body - Disassembled View

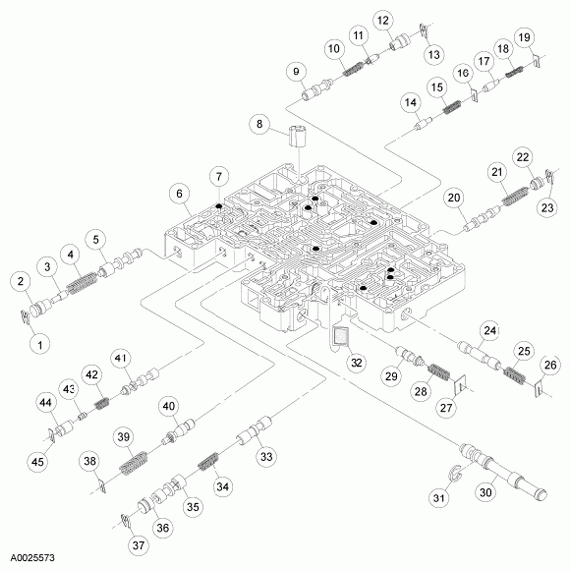

Fig 1: Exploded View Of Main Control Valve Body
G06140299Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Valve plug retainer (part of 7A100)
2 - Main pressure booster valve sleeve (part of 7A100)
3 - Main pressure booster valve (part of 7A100)
4 - Main pressure regulator valve spring (part of 7A100)
5 - Main regulator valve (part of 7A100)
6 7A100 Main control valve body assembly
7 7E195 Check ball (8 required)
8 7H171 Converter drain back valve
9 - Overdrive (O/D) servo regulator valve (part of 7A100)
10 - O/D  servo regulator valve spring (part of 7A100)
11 - O/D  servo regulator boost plunger (part of 7A100)
12 - O/D  servo regulator boost sleeve (part of 7A100)
13 - Valve retainer (part of 7A100)
14 - Capacity modulator valve (part of 7A100)
15 - Capacity modulator valve spring (part of 7A100)
16 - Spring retaining plate (part of 7A100)
17 - Capacity modulator valve (part of 7A100)
18 - Capacity modulator valve spring (part of 7A100)
19 - Spring retaining plate (part of 7A100)
20 - 3-4 shift valve (part of 7A100)
21 - 3-4 shift valve spring (part of 7A100)
22 - Valve retainer plug (part of 7A100)
23 - Valve plug retainer (part of 7A100)
24 - 2-3 backout valve (part of 7A100)
25 - 2-3 backout valve spring (part of 7A100)
26 - Spring retaining plate (part of 7A100)
27 - Spring retaining plate (part of 7A100)
28 - Pressure regulator valve spring (part of 7A100)
29 - Pressure regulator valve (part of 7A100)
30 - Control manual valve (part of 7A100)
31 - Retaining ring (part of 7A100)
32 7H187 Solenoid screen
33 - 1-2 shift valve (part of 7A100)
34 - 2-3 shift valve spring (part of 7A100)
35 - 2-3 valve (part of 7A100)
36 - Valve retaining plug (part of 7A100)
37 - Valve plug retainer (part of 7A100)
38 - Spring retaining plate (part of 7A100)
39 - Pressure regulator valve spring (part of 7A100)
40 - Pressure regulator valve (part of 7A100)
41 - Bypass clutch control valve (part of 7A100)
42 - Bypass clutch control valve spring (part of 7A100)
43 - Bypass clutch control valve plunger (part of 7A100)
44 - Bypass clutch control plunger sleeve (part of 7A100)
45 - Control valve plate (part of 7A100)
  1. Remove the Torque Converter Clutch (TCC) solenoid and the shift solenoid.
    1. Remove the bolt.
    2. Remove the shift solenoid.
    3. Remove the TCC  solenoid.
      Fig 2: Identifying Shift Solenoids And TCC Solenoid
      G06140300Courtesy of FORD MOTOR CO.
  2. Remove the 9 bolts and the 2 valve body reinforcement plates.
    Fig 3: Locating Bolts And Valve Body Reinforcement Plates
    G06140301Courtesy of FORD MOTOR CO.
  3. Remove the separator plate and discard the gaskets.

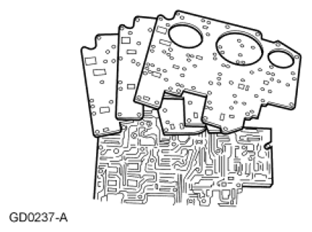

    Fig 4: Identifying Separator Plate
    G06565164Courtesy of FORD MOTOR CO.
  4. NOTE: Note the location of the 8 coasting booster valve shuttle balls for assembly.

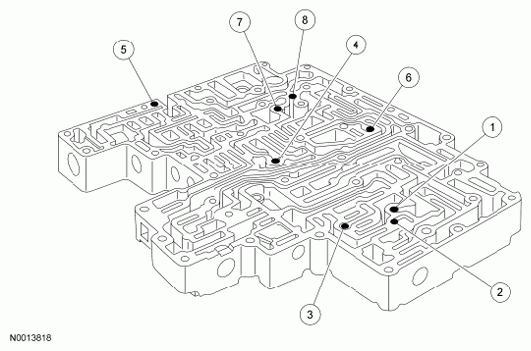

    Fig 5: Identifying Coasting Booster Valve Shuttle Balls
    G06140303Courtesy of FORD MOTOR CO.
    ITEM DESCRIPTION

    Item Part Number Description
    1 7E195 Check ball (B9) located in the forward clutch circuit near the 3-4 shift valve and the 2-3 BP circuit
    2 7E195 Check ball (B2) located in the direct clutch circuit near the 3-4 shift valve
    3 7E195 Check ball (B3) located in the direct clutch circuit near the 2-3 backout valve
    4 7E195 Check ball (B4) located in the Overdrive (O/D) and forward clutch circuit near the 1-2 shift valve
    5 7E195 Check ball (B5) located in the reverse circuit near orifice 1
    6 7E195 Check ball (B6) located between the reverse, LS modulator and the low reverse servo circuit
    7 7E195 Check ball (B7) located between the L, 2, 3, 4 and the Torque Converter Clutch (TCC) circuits
    8 7E195 Check ball (B8) located between the L, 2, 3, 4 and the intermediate clutch circuits
  5. Remove the 8 coasting booster valve shuttle balls.
  6. Remove the converter drain back valve and solenoid pressure supply screen.

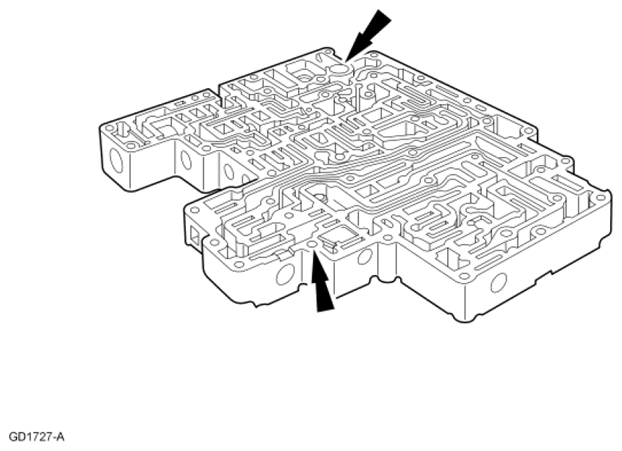

    Fig 6: Locating Converter Drain Back Valve And Solenoid Pressure Supply Screen
    G06565166Courtesy of FORD MOTOR CO.
  7. Remove the main control valve body cover plate.
    1. Remove the 13 bolts.
    2. Remove the valve body cover plate and gasket.
      Fig 7: Identifying Valve Body Cover Plate And Gasket With Bolts
      G06140305Courtesy of FORD MOTOR CO.
