Main Control Valve Body: Assembly

Install the valve body cover plate.
1. Position the valve body cover plate gasket and cover plate.
2. Loosely install the 2 guide pin bolts.
3. Loosely install the bolts.

  Fig 1: Identifying Guide Pin Bolts And Remaining Bolts
  Courtesy of FORD MOTOR CO.

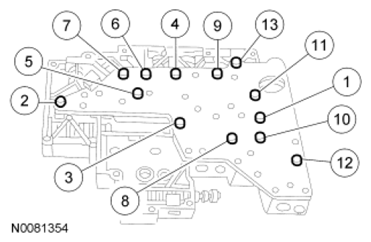

Tighten the bolts in the sequence shown in illustration.
- Tighten to 10 Nm (89 lb-in).

  Fig 2: Locating Safety Canopy® Module Electrical Connectors
  Courtesy of FORD MOTOR CO.

Install the 8 coasting booster valve shuttle balls.

Fig 3: Identifying Coasting Booster Valve Shuttle Balls

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	7E195	Check ball (B9) located in the forward clutch circuit near the 3-4 shift valve and the 2-3 BP circuit
2	7E195	Check ball (B2) located in the direct clutch circuit near the 3-4 shift valve
3	7E195	Check ball (B3) located in the direct clutch circuit near the 2-3 backout valve
4	7E195	Check ball (B4) located in the Overdrive (O/D) and forward clutch circuit near the 1-2 shift valve
5	7E195	Check ball (B5) located in the reverse circuit near orifice 1
6	7E195	Check ball (B6) located between the reverse, LS modulator and the low reverse servo circuit
7	7E195	Check ball (B7) located between the L, 2, 3, 4 and the Torque Converter Clutch (TCC) circuits
8	7E195	Check ball (B8) located between the L, 2, 3, 4 and the intermediate clutch circuits

Install the converter drain back valve and solenoid pressure supply screen.

Fig 4: Locating Converter Drain Back Valve And Solenoid Pressure Supply Screen
Courtesy of FORD MOTOR CO.
Install the separator plate and gaskets.

Fig 5: Identifying Separator Plate And Gaskets
Courtesy of FORD MOTOR CO.
Install the 2 valve body reinforcement plates and the 9 bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 6: Locating Bolts And Valve Body Reinforcement Plates
  Courtesy of FORD MOTOR CO.

NOTE: Inspect the shift solenoid O-rings and TCC solenoid O-rings for damage.
