Intermediate One-Way Clutch: Disassembly

    NOTE: One tab that locks the reverse clutch drum into the reverse sun shell may be removed. This is done for balancing purposes.
    NOTE: If the retaining ring shows signs of distortion or expansion, replace the intermediate one-way rocker clutch and retaining ring.
  1. Remove the intermediate one-way rocker clutch.
    1. Remove the inner retaining ring.
    2. Remove the intermediate one-way rocker clutch.

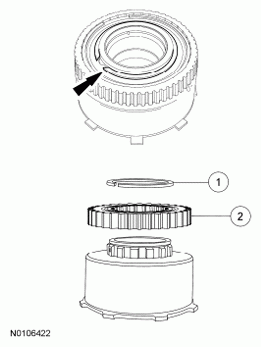

      Fig 1: Identifying Inner Retaining Ring And Intermediate One-Way Rocker Clutch
      G06140329Courtesy of FORD MOTOR CO.
