Intermediate One-Way Clutch: Assembly

    NOTE: The intermediate one-way rocker clutch must rotate counterclockwise when installed on the reverse clutch drum and will make a ratchet sound.
  1. Install the intermediate one-way rocker clutch.
    1. Install the intermediate one-way rocker clutch.
    2. Install the inner retaining ring.

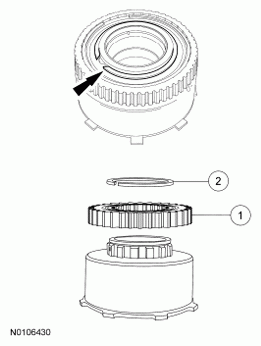

      Fig 1: Identifying Intermediate One-Way Rocker Clutch And Inner Retaining Ring
      G06140330Courtesy of FORD MOTOR CO.
