Wig-Wag Module Connector - C1365
Wig-Wag Module Connector - C1365

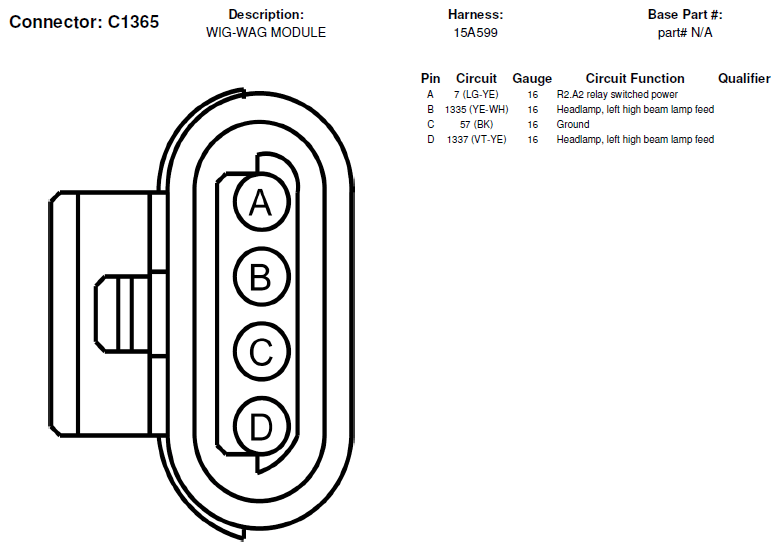

Fig 1: Wig-Wag Module Connector End View (C1365)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
