Transmission Control Switch Connector - C279

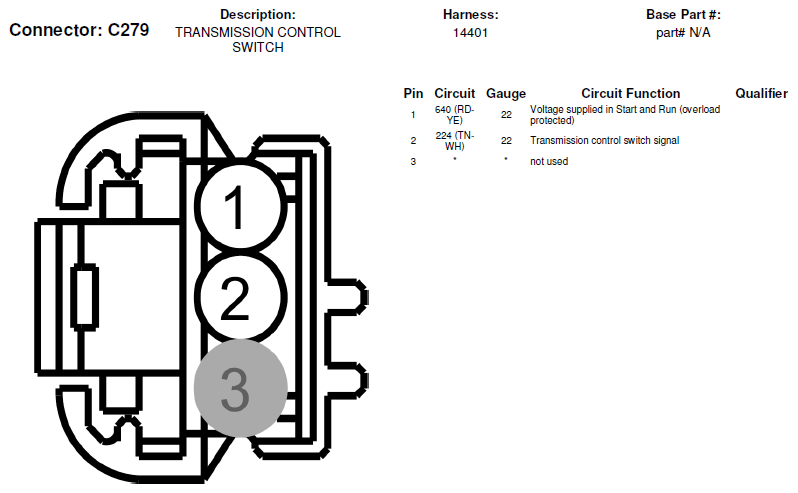

Fig 1: Transmission Control Switch Connector End View (C279)

G06286405

Courtesy of FORD MOTOR CO.
