Passive Anti-Theft System Transceiver Connector - C2007

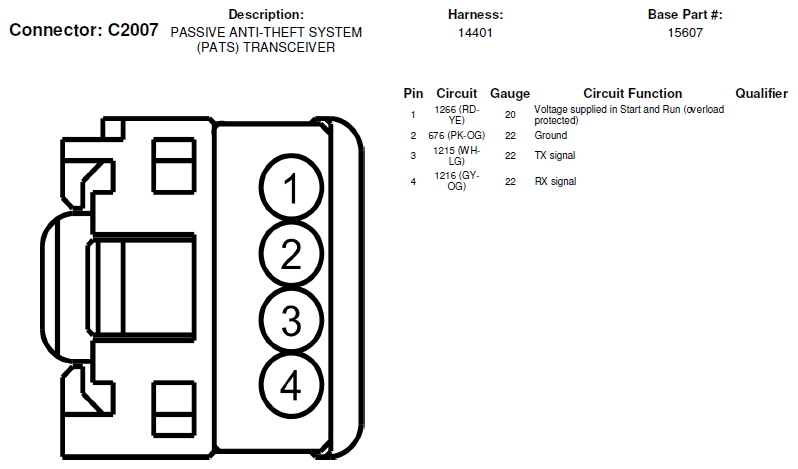

Fig 1: Passive Anti-Theft System Transceiver Connector End View (C2007)

G06286570

Courtesy of FORD MOTOR CO.
