Keyless Entry Keypad Connector - C530

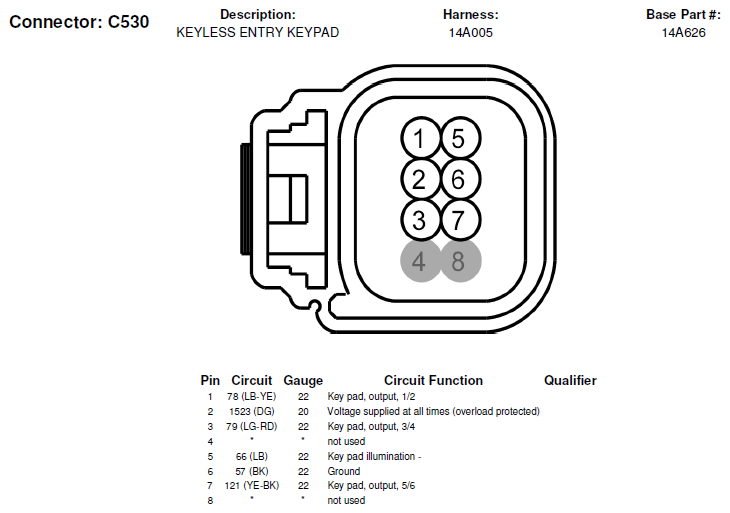

Fig 1: Keyless Entry Keypad Connector End View (C530)

G06286491

Courtesy of FORD MOTOR CO.
