Fire Suppression Module Connector - C3281A

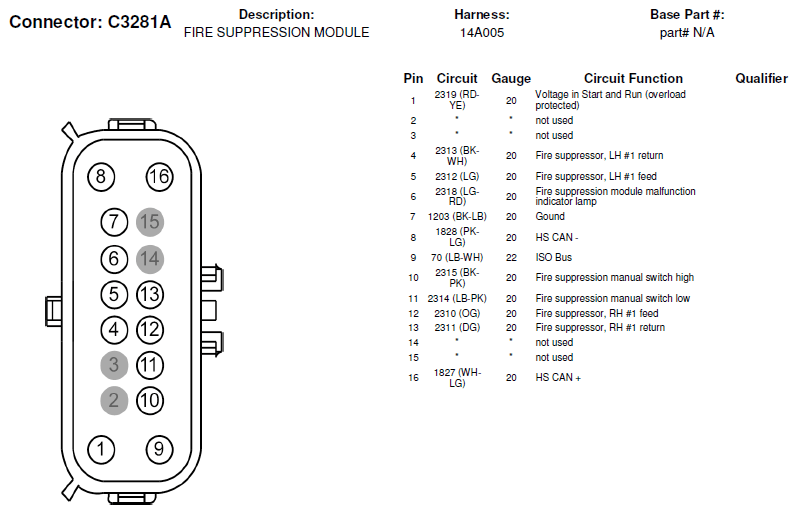

Fig 1: Fire Suppression Module Connector End View (C3281A)

G06286604

Courtesy of FORD MOTOR CO.
