Driver Side Front Heated Seat Module Connector - C359

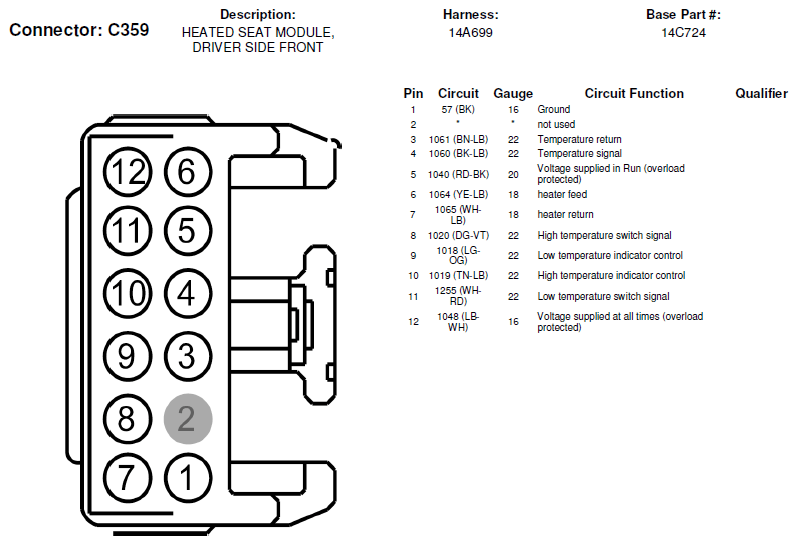

Fig 1: Driver Side Front Heated Seat Module Connector End View (C359)

G06286438

Courtesy of FORD MOTOR CO.
