RH Side

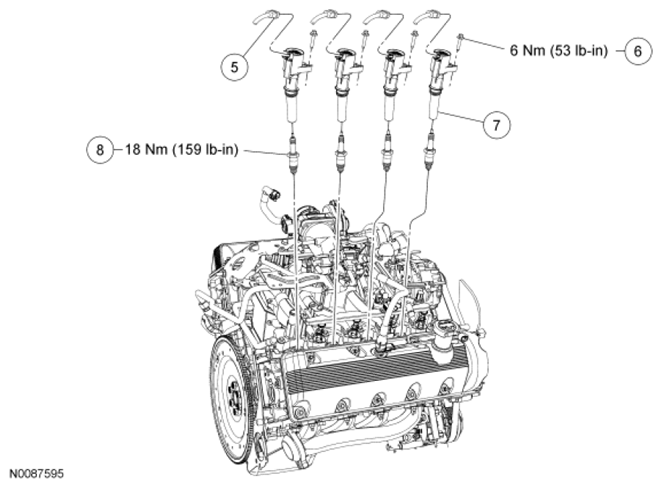

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 5 | 14A464 | Ignition coil-on-plug electrical connector (4 required) |
| 6 | W706175 | Ignition coil-on-plug bolt (4 required) |
| 7 | 12A366 | Ignition coil (4 required) |
| 8 | 12405 | Spark plug (4 required) |
- For additional information, refer to the appropriate procedure(s).
