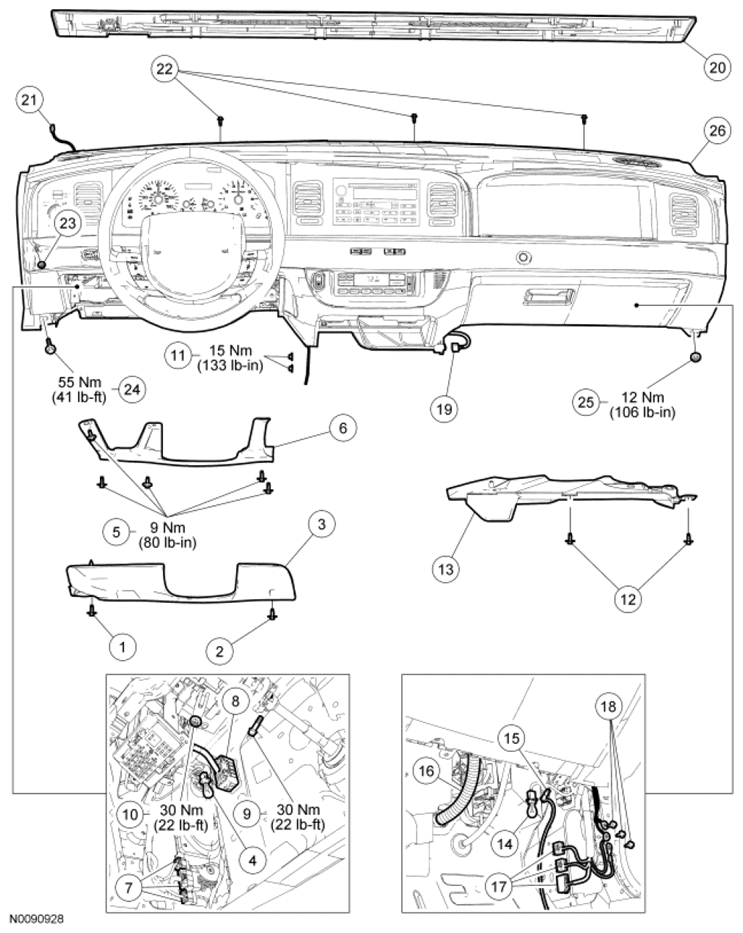

Instrument Panel - Exploded View
PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 390018 | Parking brake release handle pushpin retainer |
| 2 | W707627 | Pin-type retainer |
| 3 | 04459 | Steering column opening trim panel |
| 4 | - | Courtesy lamp socket (part of 14401) |
| 5 | N811610 | Instrument panel steering column reinforcement screws (5 required) |
| 6 | 04502 | Instrument panel steering column reinforcement |
| 7 | - | Electrical connectors (part of 14401) (3 required) |
| 8 | - | Bulkhead electrical connector (part of 14401) |
| 9 | N806423 | Intermediate shaft pinch bolt |
| 10 | 045E24 | Steering column brace nut |
| 11 | N621481 | Instrument panel tunnel brace nuts (2 required) |
| 12 | 388930 | Instrument panel lower insulator pin-type retainers (2 required) |
| 13 | 043A88 | Instrument panel lower insulator |
| 14 | - | Courtesy lamp socket (part of 14401) |
| 15 | 18812 | Antenna cable |
| 16 | 19D888 | Electronic automatic temperature control hose (if equipped) |
| 17 | - | Electrical connectors (part of 14401) (3 required) |
| 18 | W705661 | Instrument panel wiring harness ground bolts (3 required) |
| 19 | 19C827 | Climate control head vacuum harness connector |
| 20 | 044E82 | Instrument panel defroster opening grille |
| 21 | - | Sun load/auto lamp sensor electrical connector (if equipped) (part of 14401) |
| 22 | W707627 | Instrument panel cowl top screws (3 required) |
| 23 | N620482 | LH instrument panel cowl side nut |
| 24 | N804385 | LH instrument panel cowl side lower bolt |
| 25 | N620480 | RH instrument panel cowl side lower nut |
| 26 | 04320 | Instrument panel |
- For additional information, refer to the appropriate procedure(s).
