Seat Control Switch: Notes

NOTE: Driver side shown in illustration, passenger similar.

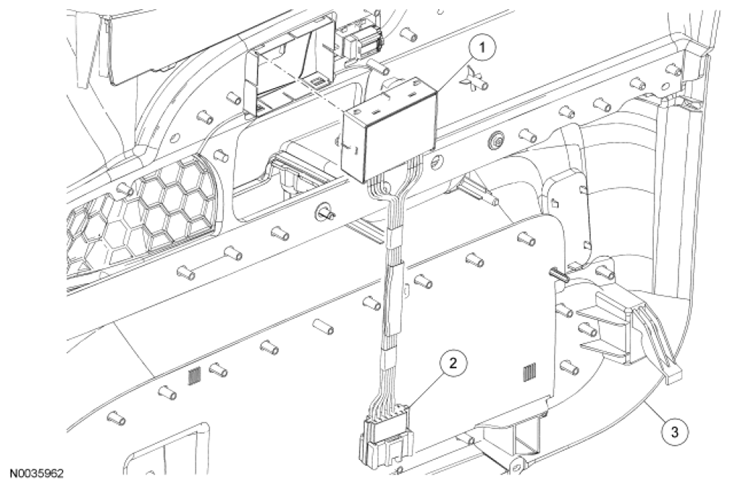

Fig 1: Identifying Seat Control Switch
G06566478Courtesy of FORD MOTOR CO.
PART NUMBER REFERENCE

Item Part Number Description
1 14A701 Seat control switch
2 - Electrical connector (part of 14A701)
3 23942 RH/23943 LH Front door trim panel
