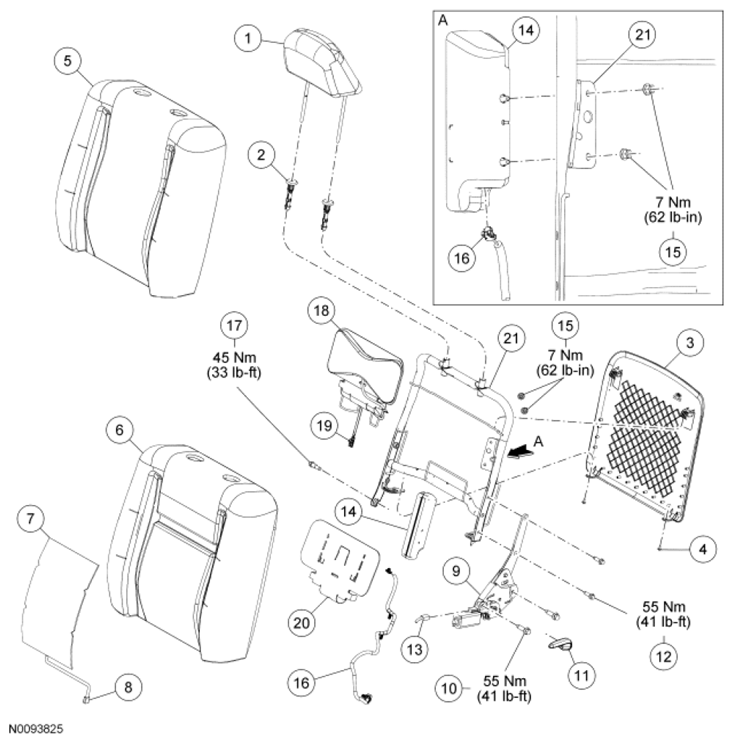

Seat Backrest - Front: Notes
NOTE:
Driver seat shown in illustration, passenger similar.
NOTE:
Front 50 percent seat shown in illustration, 40 percent similar.
PART NUMBER REFERENCE
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint assembly |
| 2 | 610A18 | Head restraint guide (2 required) |
| 3 | 60770 | Seat back trim panel (police only) |
| 4 | - | Seat back trim panel screw (2 required, police only) |
| 5 | 64416 | Backrest trim cover |
| 6 | 64810 | Backrest foam pad |
| 7 | 14D696 | Backrest heater mat (if equipped) |
| 8 | - | Electrical connector (if equipped, part of 14D696) |
| 9 | 62648/62649 | Recliner assembly (power shown in illustration, if equipped) |
| 10 | N803463 | Recliner-to-seat track bolt (2 required) |
| 11 | 61198 | Recliner handle |
| 12 | N803463 | Recliner-to-backrest frame bolt (2 required) |
| 13 | - | Electrical connector (if equipped) |
| 14 | 611D10 | Side air bag module |
| 15 | N620480 | Side air bag module nuts (2 required) |
| 16 | 14716 | Side air bag module wiring harness |
| 17 | N808123 | Pivot bolt |
| 18 | 65500 | Lumbar assembly, power (if equipped) |
| 19 | - | Electrical connector (if equipped) |
| 20 | - | Lumbar support |
| 21 | 61018 | Backrest frame |
