Generator - 2.3L: Notes

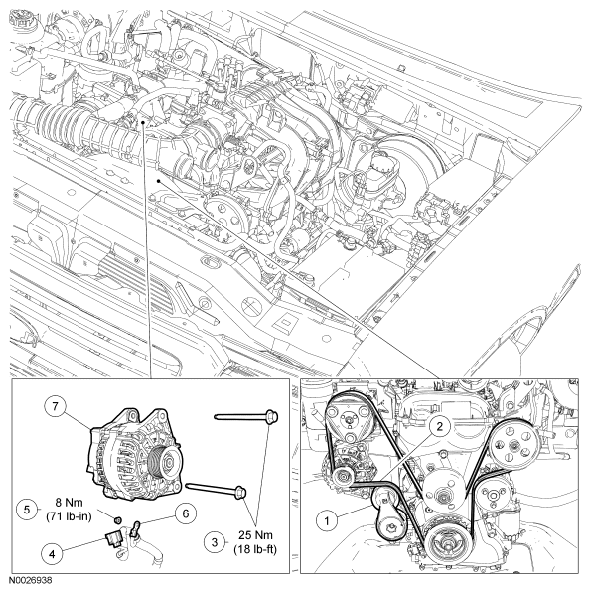

Fig 1: Generator Replacement Components - 2.3L With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	6B209	Front End Accessory Drive (FEAD) belt tensioner
2	8620	FEAD belt
3	W701331-S439	Generator bolts (2 required)
4	-	Generator electrical connector (part of 14300)
5	W705790-S901	Generator B+ terminal nut
6	-	Generator B+ terminal (part of 14300)
7	10346	Generator
