Console - Floor: Notes
NOTE:

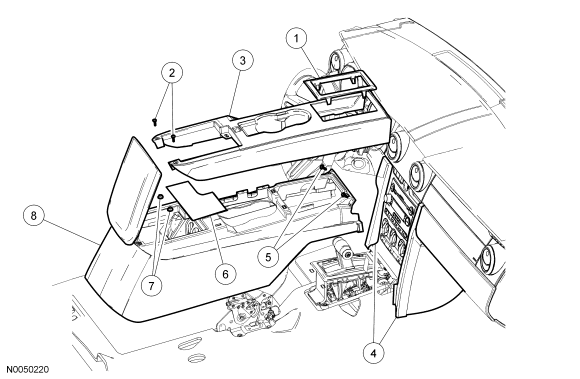

Floor console with automatic transmission shown in Fig 1, floor console with manual transmission similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7E391 | Selector lever bezel |
| 2 | W705314 | Floor console finish panel screws (2 required) |
| 3 | 044D90 | Floor console finish panel |
| 4 | 04608 RH/ 04609 LH | Instrument panel finish panels |
| 5 | W707628 | Floor console screws (2 required) |
| 6 | 13586 | Storage compartment mat |
| 7 | W711098 | Floor console nuts (2 required) |
| 8 | 045A36 | Floor console |
