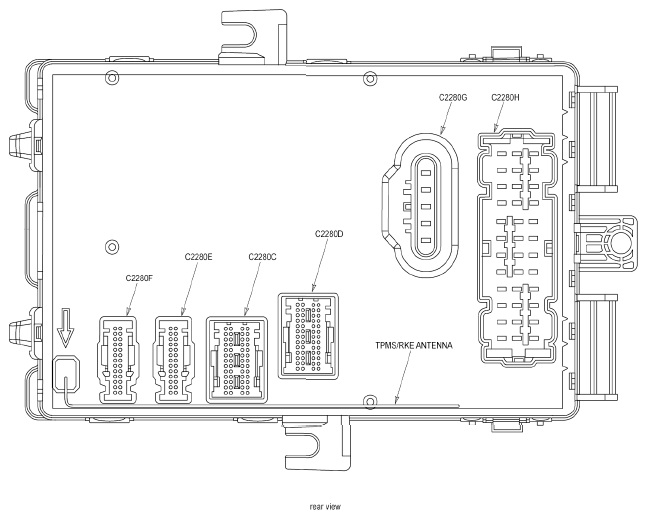

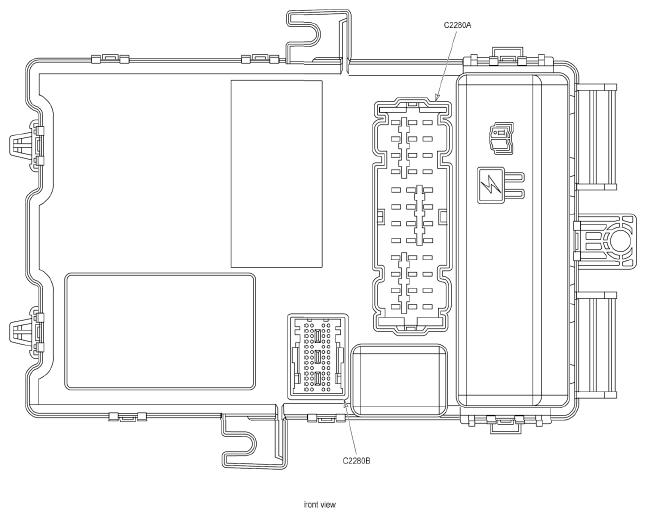

Smart Junction Box (SJB)
NOTE:
For component location, see ELECTRICAL COMPONENT LOCATOR
article.
SMART JUNCTION BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Accessory Delay Relay |

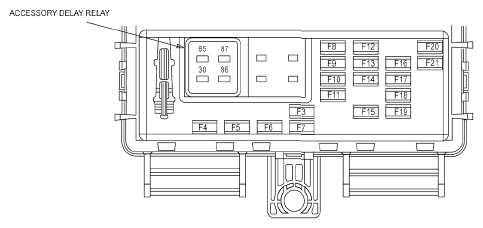

SMART JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F3 | 10A | Blower motor relay, Windshield wiper motor |
| F4 | 5A | Exterior rear view mirror switch |
| F5 | - | Not used |
| F6 | 5A | Master window adjust switch, Window adjust switch, passenger side, Door lock switch, driver side, Door lock switch, passenger side |
| F7 | 10A | Electrochromatic inside mirror unit |
| F8 | 10A | Instrument Cluster (IC), Data Link Connector (DLC) |
| F9 | - | Not used |
| F10 | 5A | HVAC Module, Overhead console |
| F11 | 5A | Not used |
| F12 | 5A | HVAC Module |
| F13 | - | Not used |
| F14 | 5A | A/C clutch cycling pressure switch |
| F15 | 10A | Stoplamp switch 1 |
| F16 | 5A | Instrument Cluster (IC) |
| F17 | 10A | Occupant Classification Sensor Module (OCSM), Restraints Control Module (RCM), Hazard flasher switch |
| F18 | 10A | Anti-lock Brake System (ABS) module |
| F19 | 5A | Powertrain control module (PCM) relay, Passive anti-theft transceiver, Instrument Cluster (IC) |
| F20 | 10A | Audio Control Module (ACM) |
| F21 | 10A | Starter relay circuit |
