Auxiliary Relay Box 1

NOTE: For component location, see ELECTRICAL COMPONENT LOCATOR article.

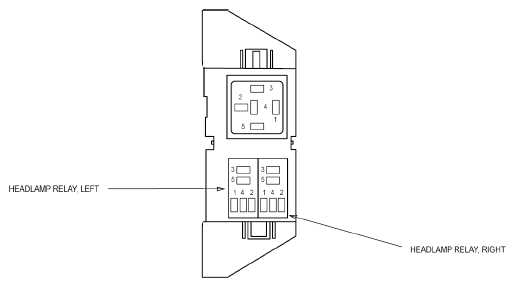

Fig 1: Auxiliary Relay Box 1 Components (1 Of 3) (4.0L, 4.6L With HID)

Courtesy of FORD MOTOR CO.

AUXILIARY RELAY BOX 1 RELAY IDENTIFICATION (4.0L, 4.6L WITH HID)

RELAY DESCRIPTION
Headlamp Relay, Left
Headlamp Relay, Right

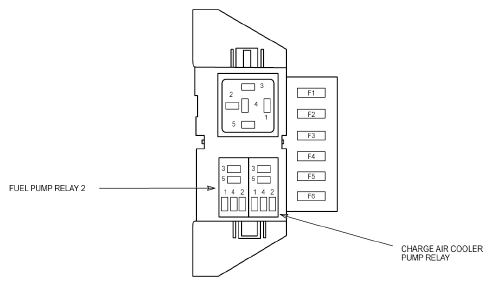

Fig 2: Auxiliary Relay Box 1 Components (2 Of 3) (5.4L Without HID)

Courtesy of FORD MOTOR CO.

AUXILIARY RELAY BOX 1 RELAY IDENTIFICATION (5.4L WITHOUT HID)

RELAY DESCRIPTION
Fuel Pump Relay 2
Charge Air Cooler Pump Relay

AUXILIARY RELAY BOX 1 COMPONENTS LEGEND (5.4L WITHOUT HID)

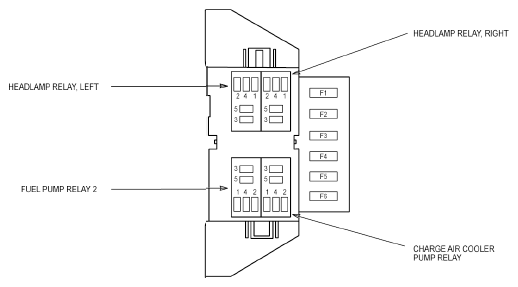

Fig 3: Auxiliary Relay Box 1 Components (3 Of 3) (5.4L With HID)

Courtesy of FORD MOTOR CO.

AUXILIARY RELAY BOX 1 RELAY IDENTIFICATION (5.4L WITH HID)

AUXILIARY RELAY BOX 1 COMPONENTS LEGEND (5.4L WITH HID)
