Safety Belt Retractor - Rear: Notes

NOTE: RH shown in illustration, LH similar.

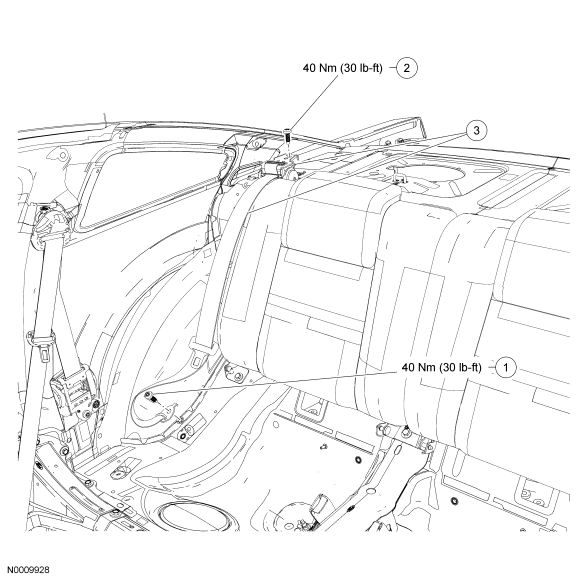

Fig 1: Exploded View Of Safety Belt Retractor With Torque Specifications - Coupe
GF0014904Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Safety belt anchor bolt (part of 611B68 RH/ 611B69 LH)
2 - Safety belt retractor bolt (part of 611B68 RH/ 611B69 LH)
3 611B68 RH/ 611B69 LH Safety belt retractor
NOTE: RH shown in illustration, LH similar.

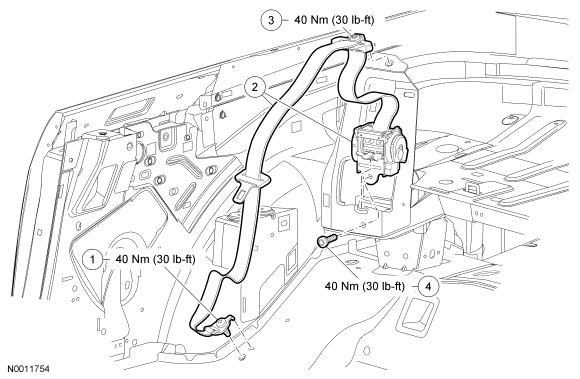

Fig 2: Exploded View Of Safety Belt Retractor With Torque Specification - Convertible
GF0046278Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Safety belt anchor bolt (part of 611B68 RH/ 611B69 LH)
2 611B68 RH/ 611B69 LH Safety belt retractor
3 - D-ring bolt (part of 611B68 RH/ 611B69 LH)
4 - Safety belt retractor bolt (part of 611B68 RH/ 611B69 LH)
