Seat - Front: Notes

NOTE: LH shown, RH similar.

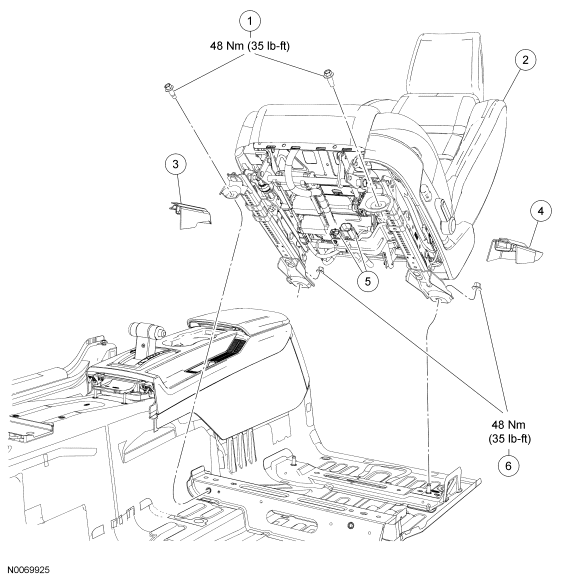

Fig 1: Exploded View Of Front Seat With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Seat track-to-floor bolts
2	-	Front seat
3	618C84	Inboard seat track nut cover
4	618C82	Outboard seat track nut cover
5	-	Seat electrical connectors (part of 14A699)
6	N807939	Seat track-to-floor nuts
