Seat - Exploded View, Rear

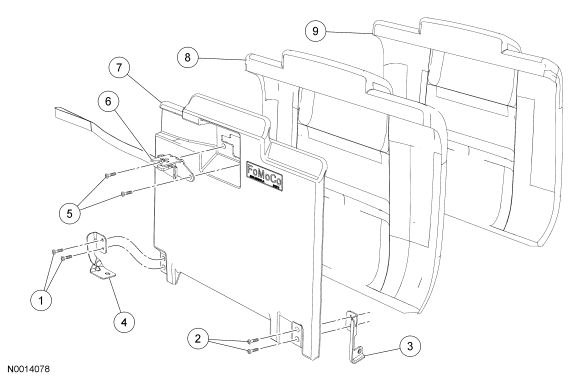

Fig 1: Exploded View Of Rear Seat Hard Top 50 Percent Backrest

GF0000076

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Rivets
2	-	Rivets
3	-	Inboard pivot bracket
4	60515	Outboard pivot bracket
5	-	Rivets
6	-	Backrest latch assembly
7	60509	Backrest panel
8	-	Backrest foam pad
9	66601	Backrest trim cover

For additional information, refer to the procedures.
