Rear Brake Pads: Notes

WARNING: This page is about a different car, the 2008 Mercury Milan, 2008 Lincoln MKZ, and 2008 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Adapter, Rear Brake Caliper Piston Adjuster	206-026 (T87P-2588-A) or equivalent

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada)	WSS-M6C62-A or WSS-M6C65-A1

NOTE: Front wheel drive (FWD) shown, all wheel drive (AWD) similar.

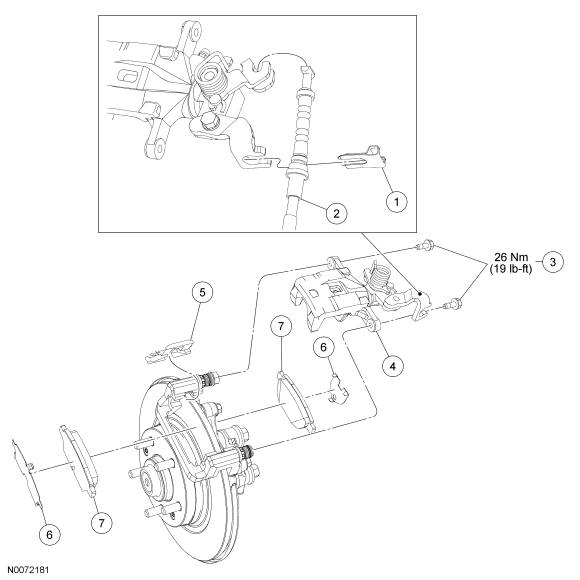

Fig 1: Exploded View Of Brake Pads With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2860	Parking brake cable conduit retaining clip
2	2A815	Parking brake cable
3	-	Brake caliper guide pin bolts (2 required) (part of 2386)
4	2552 LH/ 2553 RH	Brake caliper
5	-	Brake pad slide clip (2 required) (part of 2200)
6	-	Brake pad shims (2 required) (part of 2200)
7	2200	Brake pads (2 required)
