Occupant Classification System Module Connector - C3285

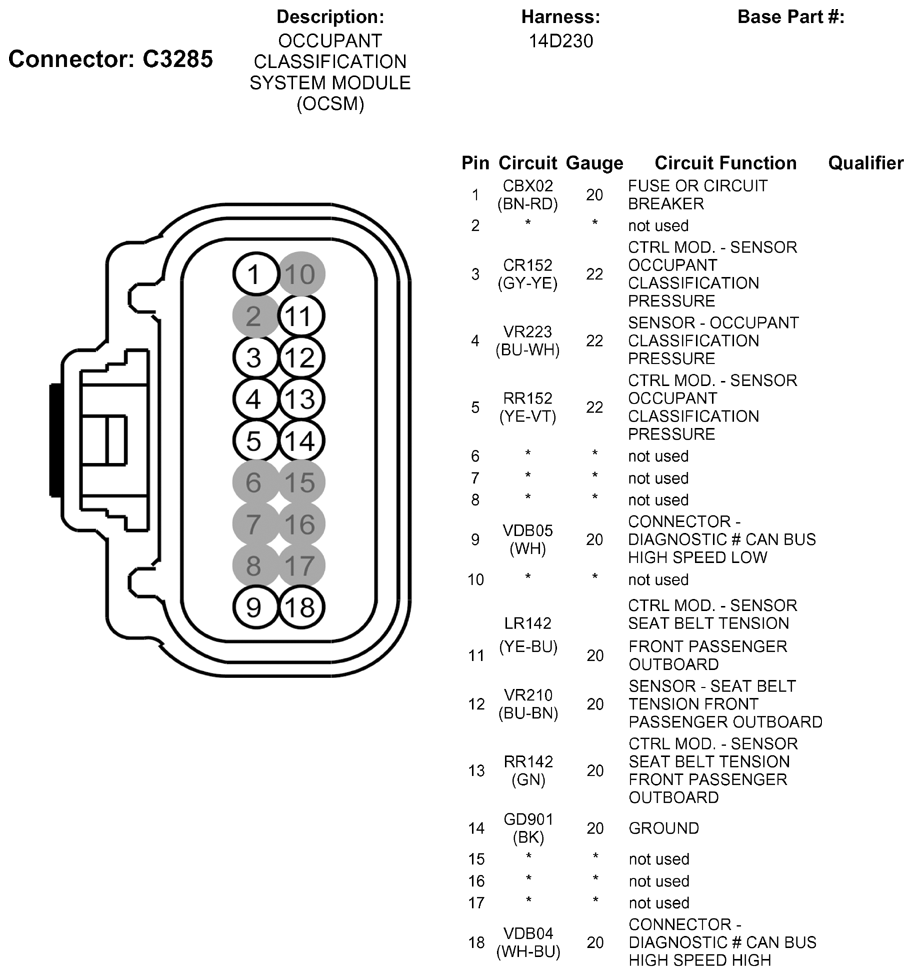

Fig 1: Occupant Classification System Module Connector End View (C3285)

G05791202

Courtesy of FORD MOTOR CO.
