Transaxle Support Insulator - Anti-Roll: Notes

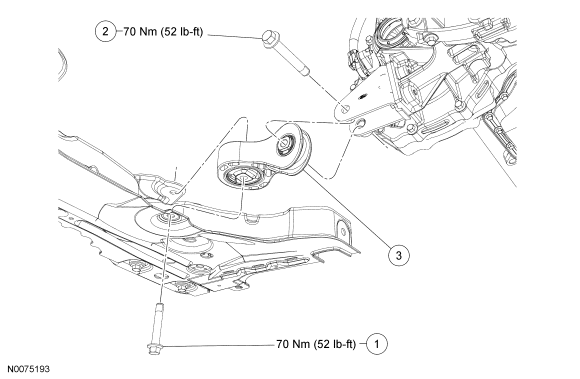

Fig 1: Transaxle Support Insulator - Anti-Roll Components With Torque Specifications
GF0043340Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W702826 Roll restrictor-to-subframe bolt
2 W702801 Roll restrictor-to-transaxle bracket bolt
3 6P082 Roll restrictor
