Power Steering Pressure (PSP) Switch: Notes

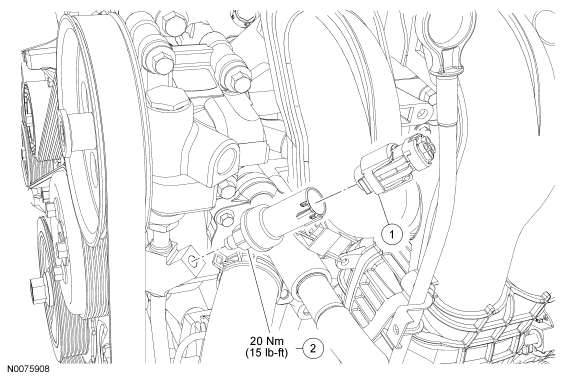

Fig 1: Power Steering Pressure Sensor & Electrical Connector With Torque Specifications
GF0043209Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Power steering pressure (PSP) sensor electrical connector
2 3A719 PSP sensor
