Engine Lubrication Components

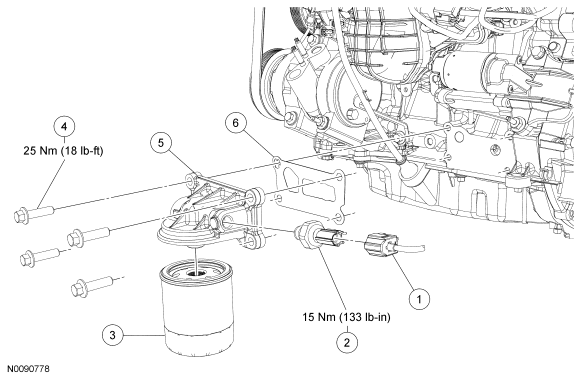

Fig 1: Oil Filter Adapter And Engine Oil Pressure (EOP) Switch Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Engine Oil Pressure (EOP) switch electrical connector (part of 12C508) |
| 2 | 9278 | EOP switch |
| 3 | 6714 | Oil filter |
| 4 | W500025 | Oil filter adapter bolt (4 required) |
| 5 | 6884 | Oil filter adapter |
| 6 | 6A636 | Oil filter adapter gasket |
NOTE:
Automatic transaxle shown in illustration, manual transaxle similar.

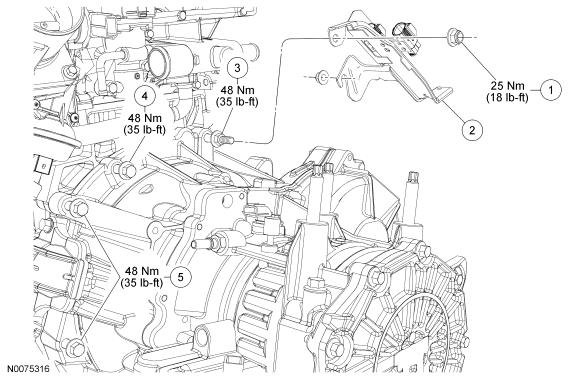

| Item | Part Number | Description |
|---|---|---|
| 1 | W520103 | Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor (CMS) wire connector bracket nut (2 required) |
| 2 | 14301 | HO2S and CMS wire connector bracket |
| 3 | W500124 | Upper bellhousing-to-engine stud bolt |
| 4 | W500121 | Upper bellhousing-to-engine bolt |
| 5 | W500125 | LH bellhousing-to-engine bolts (3 required for manual transaxle) (2 required for automatic transaxle) |
NOTE:
Automatic transaxle shown in illustration in illustration, manual transaxle similar.

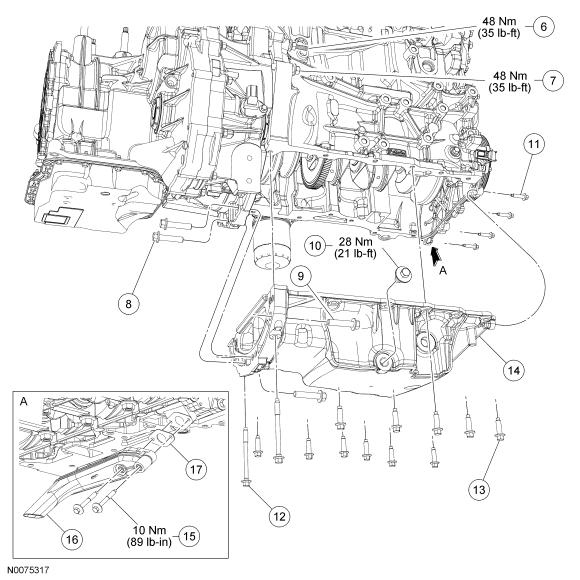

| Item | Part Number | Description |
|---|---|---|
| 6 | W500124 | RH engine-to-bellhousing stud bolt |
| 7 | W500120 | RH engine-to-bellhousing bolt |
| 8 | W500121 | Bellhousing-to-oil pan bolt (2 required) |
| 9 | W500121 | Oil pan-to-bellhousing bolt (2 required) |
| 10 | 6730 | Oil pan drain plug |
| 11 | W500215 | Engine front cover-to-oil pan bolt (4 required) |
| 12 | W706284 | Oil pan bolt (2 required) |
| 13 | W500224 | Oil pan bolt (11 required) |
| 14 | 6675 | Oil pan |
| 15 | W706282 | Oil pump screen and pickup tube bolt (2 required) |
| 16 | 6622 | Oil pump screen and pickup tube |
| 17 | 6625 | Oil pump screen and pickup tube gasket |

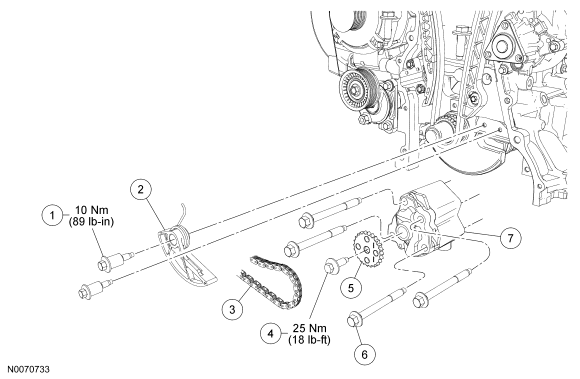

| Item | Part Number | Description |
|---|---|---|
| 1 | W703651 | Oil pump drive chain tensioner shoulder bolt (2 required) |
| 2 | 6C271 | Oil pump drive chain tensioner |
| 3 | 6A895 | Oil pump drive chain |
| 4 | W704397 | Oil pump sprocket bolt |
| 5 | 6652 | Oil pump sprocket |
| 6 | W703647 | Oil pump bolt (4 required) |
| 7 | 6600 | Oil pump |
- For additional information, refer to the appropriate procedures in this service information.
