Coolant Pump: Notes

MATERIAL

Item	Specification
Motorcraft Premium Gold Engine Coolant with Bittering Agent (bittered in US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color)	WSS-M97B51-A1

Fig 1: Coolant Pump Components With Torque Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701107	Coolant expansion tank bolt (2 required)
2	8C045	Coolant expansion tank

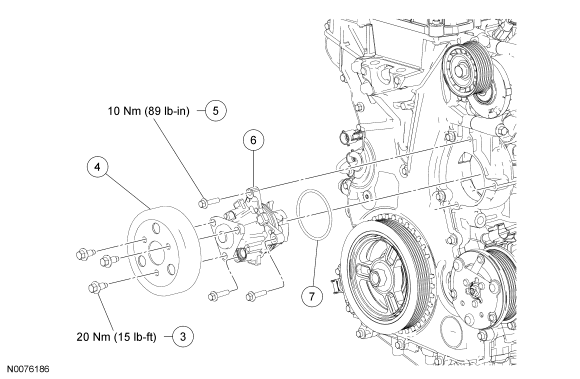

Fig 2: Coolant Pump Components With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
3	W500221	Coolant pump pulley bolt (3 required)
4	8509	Coolant pump pulley
5	W500015	Coolant pump bolt (3 required)
6	8501	Coolant pump
7	8507	Coolant pump O-ring seal
