Instrument Panel - Exploded View

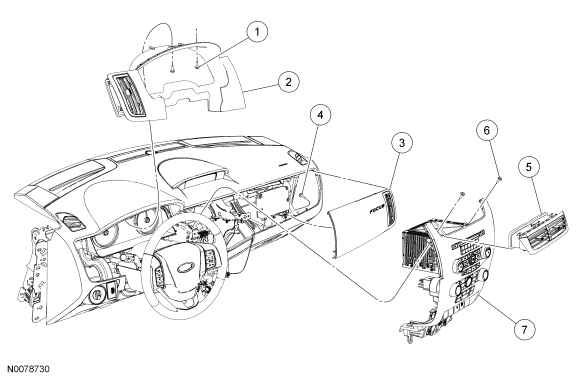

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Instrument cluster finish panel screw (2 required) |
| 2 | 044D70 | Instrument cluster finish panel |
| 3 | 04338B | RH instrument panel finish panel |
| 4 | - | RH instrument panel finish panel screw |
| 5 | 19893B | Instrument panel center register |
| 6 | W707628 | Center instrument panel finish panel screw (2 required) |
| 7 | 04302 | Center instrument panel finish panel |

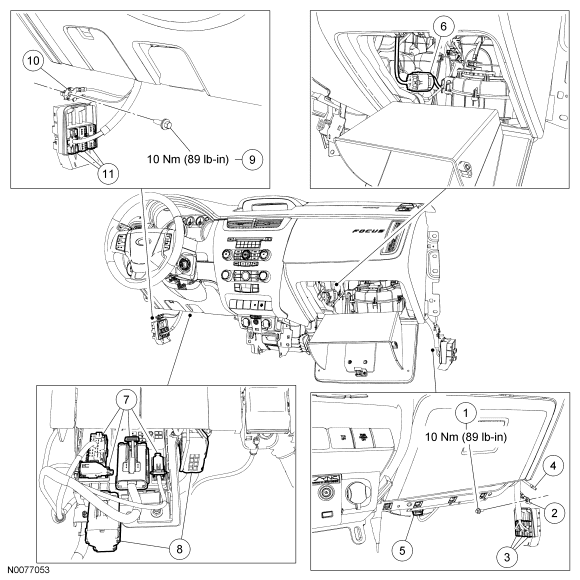

| Item | Part Number | Description |
|---|---|---|
| 1 | W705661 | RH ground wire bolt |
| 2 | - | RH ground wire (part of 14014) |
| 3 | - | RH instrument panel electrical connectors (part of 14014) |
| 4 | 18812A | Antenna cable |
| 5 | - | Blower motor electrical connector (part of 14014) |
| 6 | - | Heater core and evaporator core electrical connector (part of 14014) |
| 7 | - | Smart junction box (SJB)/generic electronic module (GEM) electrical connectors (part of 14014) |
| 8 | - | SJB/GEM electrical connectors (part of 14405) |
| 9 | W705661 | LH ground wire bolt |
| 10 | - | LH ground wire (part of 14014) |
| 11 | - | LH instrument panel electrical connectors (part of 14014) |

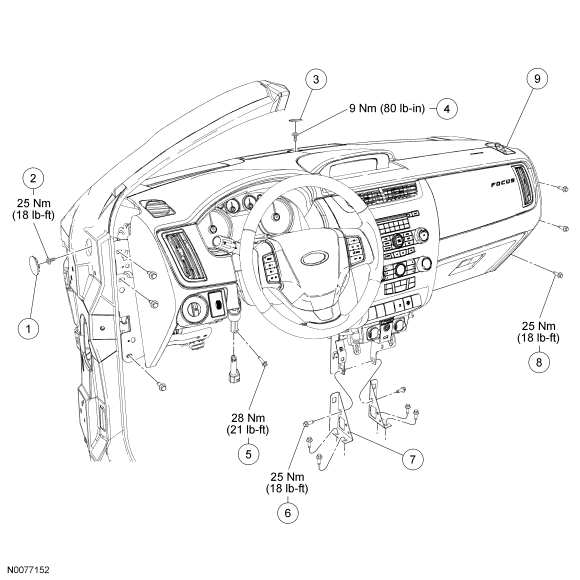

| Item | Part Number | Description |
|---|---|---|
| 1 | - | LH instrument panel side bolt cover (part of 5985) |
| 2 | W710090 | LH instrument panel side bolt |
| 3 | 044F58 | Instrument panel upper cowl bolt cover |
| 4 | W707491 | Instrument panel upper cowl bolt |
| 5 | 706229 | Upper steering column shaft-to-lower steering column shaft bolt |
| 6 | W710090 | Instrument panel support bracket bolt (6 required) |
| 7 | 044C52 | Instrument panel support bracket |
| 8 | W710090 | Instrument panel bolt (6 required) |
| 9 | 04320 | Instrument panel |
- For additional information, refer to the appropriate procedures.
