Roof Opening Panel Module Connector - C9015

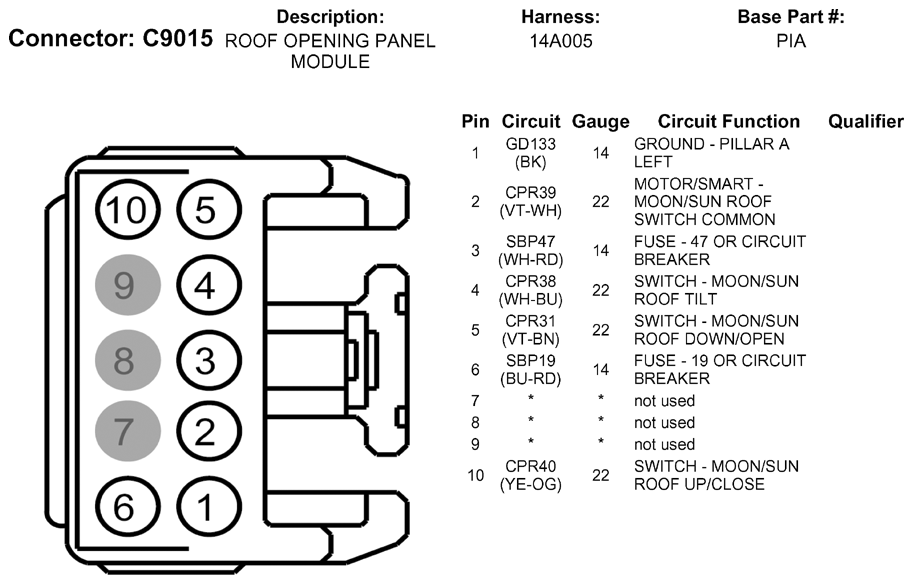

Fig 1: Roof Opening Panel Module Connector End View (C9015)

G05791212

Courtesy of FORD MOTOR CO.
