Special Tool(s)

SPECIAL TOOL SPECIFICATION

Courtesy of FORD MOTOR CO.

Oil Pan Holding Fixture
303-1295

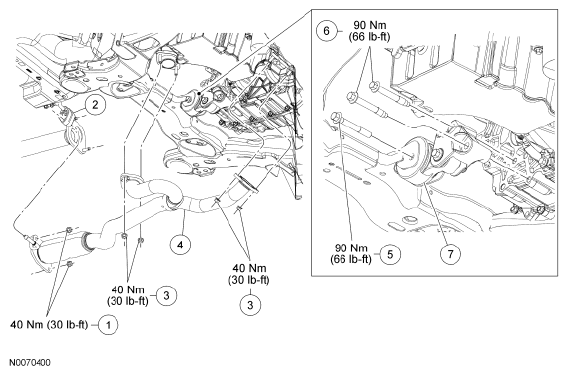

Fig 1: Transaxle Support Insulator Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W705443	Y-pipe nuts
2	5F262	Y-pipe hanger
3	W705443	Y-pipe-to-catalytic converter nuts
4	5G274	Y-pipe assembly
5	W706674	Roll restrictor-to-subframe through bolt
6	W713156	Roll restrictor bracket bolts
7	6P082	Roll restrictor assembly

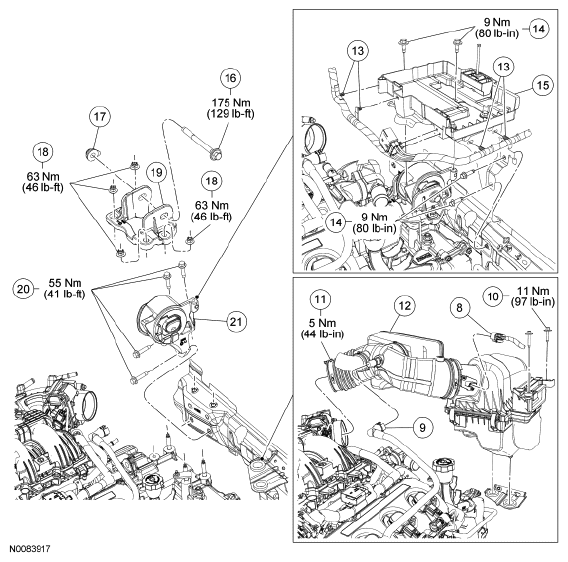

Fig 2: Transaxle Support Insulator Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
8	14A464	Electrical connector - Mass Air Flow (MAF) sensor
9	6758	Tube assembly - crankcase vent
10	N606678	Bolt - Air Cleaner (ACL) bracket
11	9C632	Clamp - ACL outlet pipe
12	9C662	ACL assembly
13	13A506	Fasteners - wiring harness
14	W503924	Bolts - battery tray
15	10723	Battery tray
16	W711873	Through bolt - transaxle support insulator
17	W711872	Flagnut - transaxle support insulator through bolt
18	W712334	Nuts - transaxle support insulator bracket
19	6B033	Bracket - transaxle support insulator
20	W709234	Bolts - transaxle support insulator
21	6F020	Transaxle support insulator
