Selector Lever Bezel: Removal

All vehicles

1. Remove the selector lever bezel trim ring.
   Fig 1: Locating Selector Lever Trim Ring

   Courtesy of FORD MOTOR CO.
2. Lift the armrest and remove the upper console panel.
   Fig 2: Removing Upper Console Panel And Armrest

   Courtesy of FORD MOTOR CO.
3. Slide the lower selector lever knob bezel downward.
   Fig 3: Locating Lower Selector Lever Knob Bezel Downward

   Courtesy of FORD MOTOR CO.
4. Remove the 2 screws from the selector lever knob.
   Fig 4: Locating Screws From Selector Lever Knob

   Courtesy of FORD MOTOR CO.

   Vehicles not equipped with a Transmission Control Switch (TCS)

5. Remove the selector lever knob and knob bezel.

   All vehicles

NOTE: Selector lever removed for clarity.

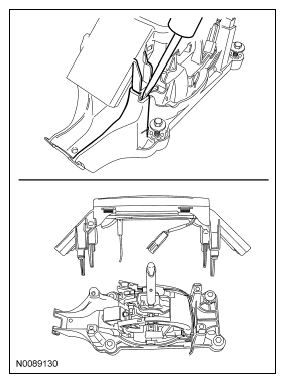

Fig 5: Releasing Selector Lever Bezel Tabs
Courtesy of FORD MOTOR CO.
6. Release the 4 selector lever bezel tabs and position the selector lever bezel aside to gain access to the bezel light and the Transmission Control Switch (TCS) connector, if equipped.
7. Disconnect the selector lever bezel light electrical connector from the selector lever.
   Fig 6: Locating Selector Lever Bezel Light Electrical Connector From Selector Lever

   Courtesy of FORD MOTOR CO.

   Vehicles equipped with a TCS

8. Disconnect the TCS  connector, route the wiring harness out of the selector lever bezel and remove the selector lever knob and knob bezel.
   Fig 7: Locating TCS Electrical Connector

   Courtesy of FORD MOTOR CO.

   All vehicles

9. Remove the selector lever bezel.
