Four Wheel Drive Control Module Connector - C281

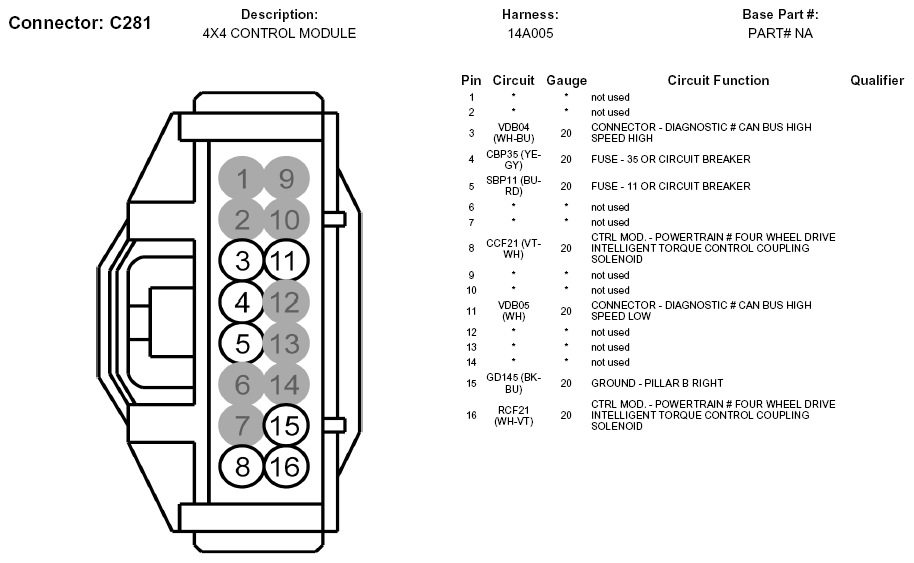

Fig 1: Four Wheel Drive Control Module Connector End View (C281)

G05776872

Courtesy of FORD MOTOR CO.
