Compass Zone Adjustment

NOTE: This procedure is only applicable to vehicles without navigation. For vehicles with navigation, refer to INFORMATION AND ENTERTAINMENT SYSTEMS .
  1. Refer to the compass calibration zone map to select the correct compass zone setting for the geographic location of the vehicle.

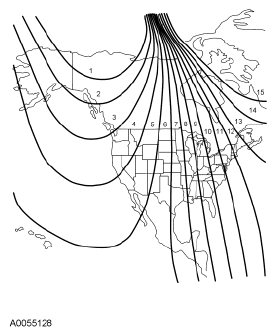

    Fig 1: Compass Calibration Zone Map
    G06070687Courtesy of FORD MOTOR CO.
  2. NOTE: The key must be in the ON position.

    Press and hold the 7 and 9 buttons (for approximately 5 seconds) until the compass display shows the current zone setting (ZONE XX). Release the 7 and 9 buttons.

  3. Momentarily press and release the 7 and 9 buttons to increase the zone increment by one. Set the zone display number to match the vehicle geographic location that is shown on the compass calibration zone map.
  4. Release the 7 and 9 buttons for 5 seconds to exit the zone setting mode.
