Front Display Interface Module Connector - C2123

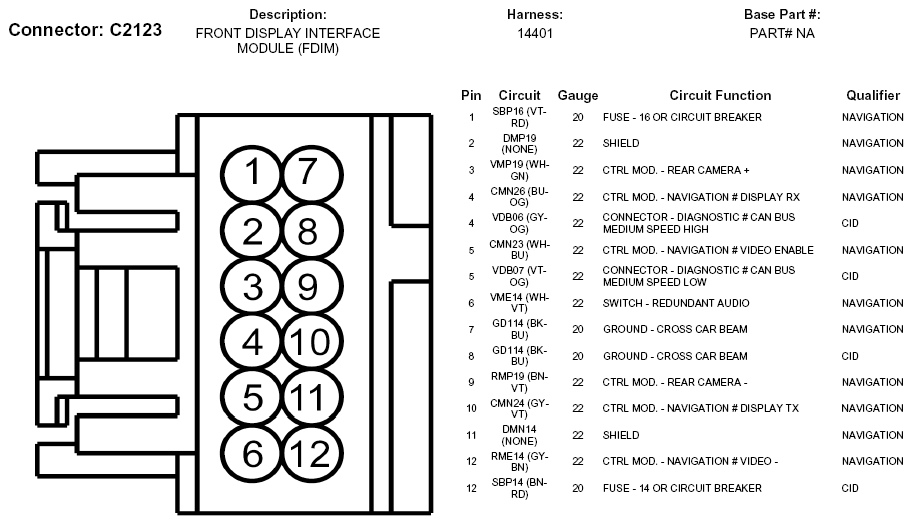

Fig 1: Front Display Interface Module Connector End View (C2123)

G05777001

Courtesy of FORD MOTOR CO.
