Safety Belt Buckle - Third Row: Notes

NOTE: RH shown in illustration, LH similar.

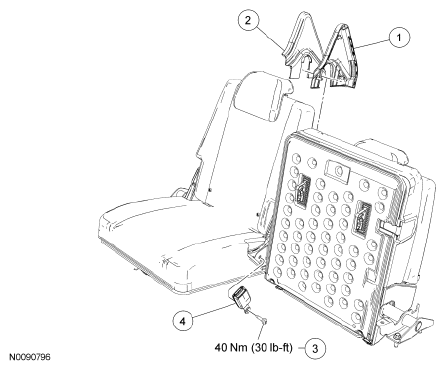

Fig 1: Exploded View Of Safety Belt Buckle With Torque Specification - Third Row
G06071325Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 - LH inboard pivot cover
2 - RH inboard pivot cover
3 - RH safety belt buckle bolt (part of 613D48)
4 613D48 RH safety belt buckle
