Seat - Third Row: Notes

Material

Item	Specification
Threadlock and Sealer TA-25	WSK-M2G351-A5

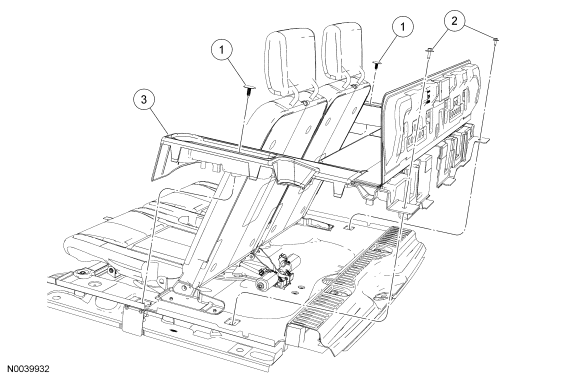

Fig 1: Cargo Management System

GF0026381

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709343	Pin-type retainers (2 required)
2	W704734	Bolts (2 required)
3	310A67	Cargo management system

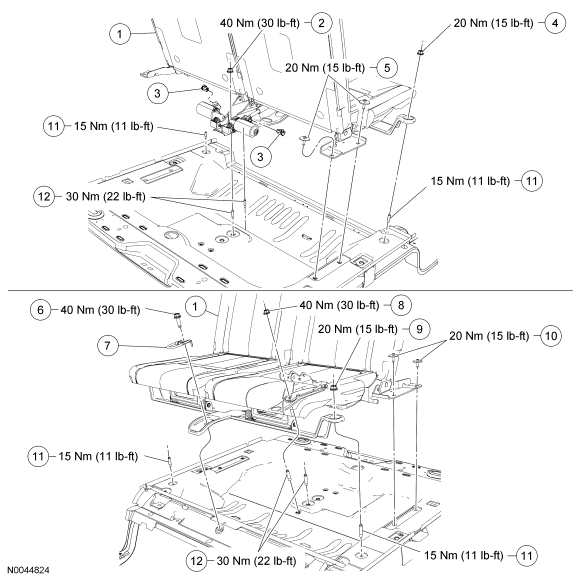

Fig 2: Third Row Seat

GF0026382

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Third row seat
2	W707654	Floor mounting bracket center rear nut
3	-	Power fold seat motor electrical connectors (part of 14B509)
4	W710869	Floor mounting bracket RH nut
5	W710851	Floor mounting bracket RH bolts (2 required)
6	-	Floor mounting bracket front bolt (part of 613D74)
7	613D74	Child safety seat tether anchor
8	W707654	Floor mounting bracket center front nut
9	W710869	Floor mounting bracket LH nut
10	W710851	Floor mounting bracket LH bolts (2 required)
11	W710867	Floor mounting bracket LH/RH studs (2 required)
12	W711375	Floor mounting bracket center studs (2 required)
