Seat - Front: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) | software with appropriate hardware, or equivalent scan tool |
Material
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |
NOTE:

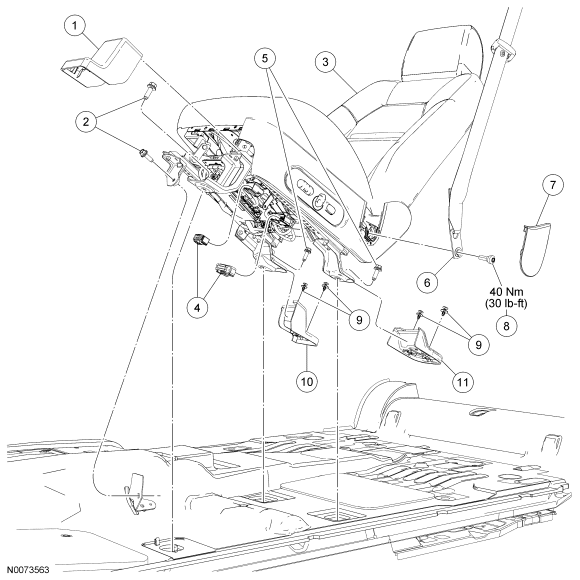

Driver seat shown, passenger seat similar.
NOTE:
The 4 seat track-to-floor bolts must be tightened in the sequence described in this procedure.
| Item | Part Number | Description |
|---|---|---|
| 1 | 62163 | Seat track-to-floor bolt front cover |
| 2 | W711352 | Seat track-to-floor front bolts |
| 3 | - | Seat |
| 4 | - | Electrical connectors (part of 14A005) |
| 5 | W711352 | Seat track-to-floor rear bolts |
| 6 | - | Safety belt retractor belt anchor (part of 611B09) |
| 7 | - | Cushion side shield cover (part of 62187) |
| 8 | - | Safety belt retractor belt anchor bolt (part of 611B09) |
| 9 | 600A58 | Scrivets |
| 10 | 61749 | Seat track-to-floor bolt rear inboard cover |
| 11 | 61749 | Seat track-to-floor bolt rear outboard cover |
