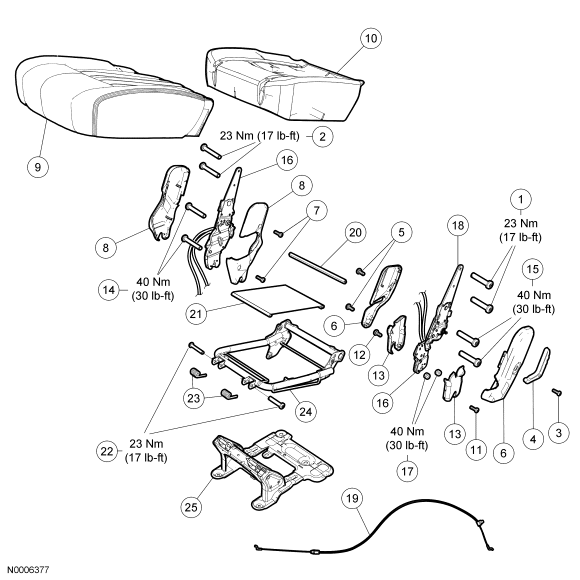

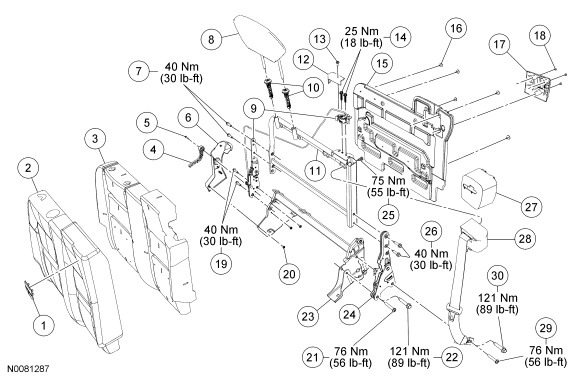

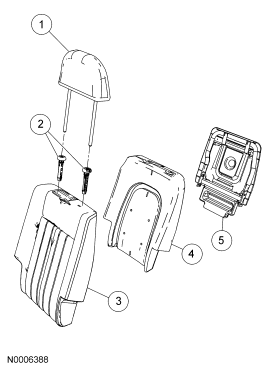

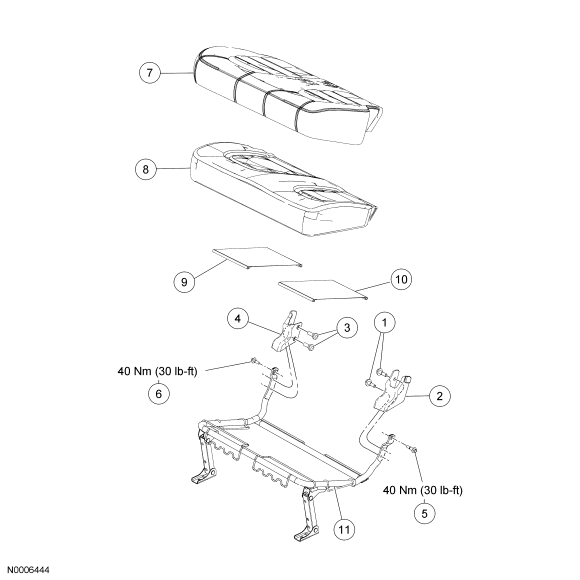

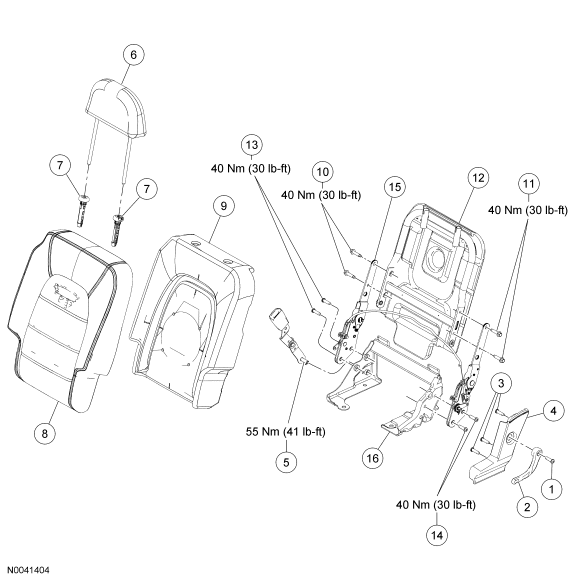

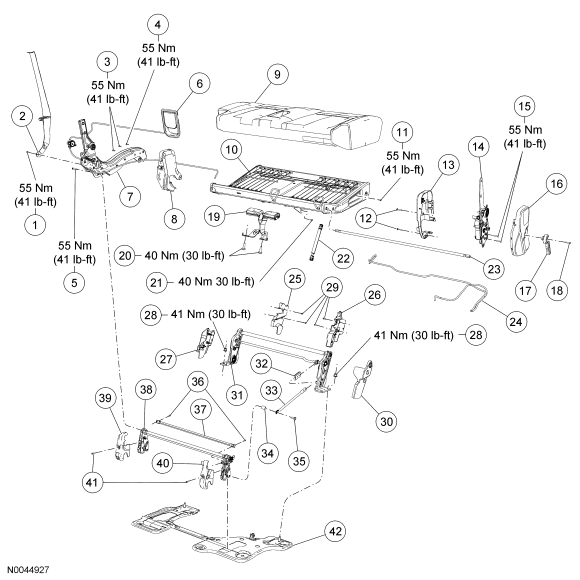

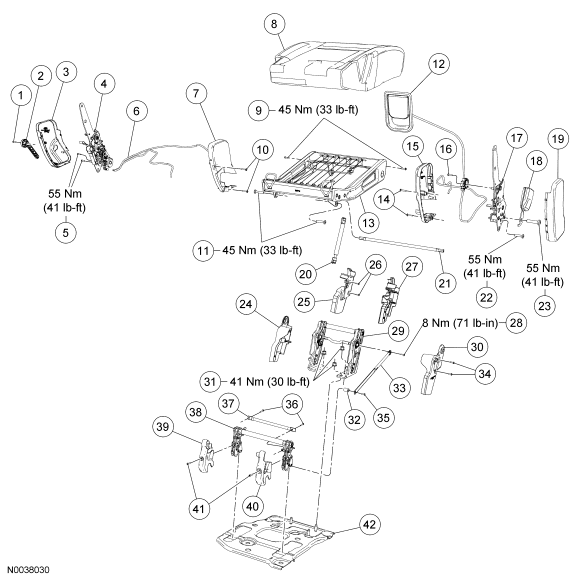

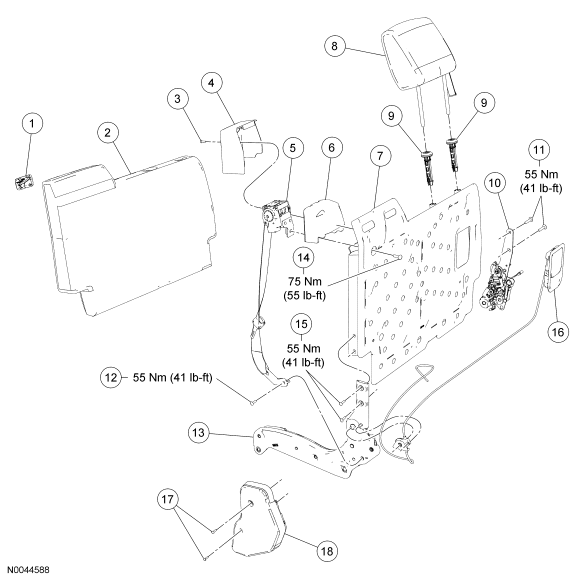

Seat - Exploded View, Second Row
| Item | Part Number | Description |
|---|---|---|
| 1 | 610D72 | Safety belt bezel |
| 2 | 66600/66800 | Backrest trim cover/backrest foam pad |
| 3 | - | Pin-type retainer (part of 605C10) |
| 4 | 613C46 | Safety belt retractor cover |
| 5 | 611B64 | Safety belt retractor |
| 6 | 611D52 | Safety belt retractor insulator |
| 7 | 613A38 | Backrest frame |
| 8 | - | Head restraint |
| 9 | 610A16 | Head restraint guides |
| 10 | 61382 | Outboard recliner |
| 11 | - | Outboard recliner-to-backrest frame bolts (part of 605C10) |
| 12 | - | Safety belt anchor bolt (part of 605C10) |
| 13 | 61383 | Inboard recliner |
| 14 | - | Safety belt retractor bolt (part of 605C10) |
| 15 | - | Inboard recliner-to-backrest frame bolts (part of 605C10) |
| 16 | 601L60 | Kneeling mechanism release handle and cable |
| 17 | - | Screws (part of 605C10) |
| 18 | 61349 | Inboard recliner outer cover |
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Safety belt anchor bolt (part of 605C10) |
| 2 | - | Safety belt anchor (part of 611B64) |
| 3 | - | Inboard recliner-to-cushion frame bolts (part of 605C10) |
| 4 | - | Inboard recliner-to-kneeling mechanism bolt (part of 605C10) |
| 5 | - | Inboard recliner-to-latch foot assembly bolt (part of 605C10) |
| 6 | 601L60 | Kneeling mechanism release handle and cable |
| 7 | 61383 | Inboard recliner |
| 8 | 61349 | Inboard recliner inner cover |
| 9 | 63804/63840 | Cushion trim cover/cushion foam pad |
| 10 | 63160 | Cushion frame |
| 11 | - | Cushion frame-to-kneeling mechanism bolt (part of 605C10) |
| 12 | - | Screws (2 required) (part of 605C10) |
| 13 | 61348 | Outboard recliner inner cover |
| 14 | 61382 | Outboard recliner |
| 15 | - | Outboard recliner-to-cushion frame bolts (part of 605C10) |
| 16 | 61348 | Outboard recliner outer cover |
| 17 | 62418 | Recliner handle |
| 18 | - | Screw (part of 605C10) |
| 19 | 611C72 | Safety belt buckle assembly |
| 20 | W700883 | Safety belt buckle assembly bolts |
| 21 | - | Cushion frame-to-latch foot assembly bolt (part of 605C10) |
| 22 | 624B74 | Shock |
| 23 | 61382 | Recliner release shaft |
| 24 | 601L60 | Cable assembly |
| 25 | 81349 | Kneeling mechanism inboard leg inner cover |
| 26 | 81348 | Kneeling mechanism outboard leg inner cover |
| 27 | 81349 | Kneeling mechanism inboard leg outer cover |
| 28 | - | Kneeling mechanism-to-mounting plate nuts (2 required) (part of 605C10) |
| 29 | - | Screws (4 required) (part of 605C10) |
| 30 | 81348 | Kneeling mechanism outboard leg outer cover |
| 31 | 61382 | Kneeling mechanism |
| 32 | - | Latch feet retracting link retainer |
| 33 | 61382 | Latch feet retracting link |
| 34 | - | Spacer |
| 35 | - | Bolt (part of 605C10) |
| 36 | - | Screws (part of 605C10) |
| 37 | - | Latch feet release bar |
| 38 | 61382 | Latch feet assembly |
| 39 | 61349 | Inboard latch foot cover |
| 40 | 61348 | Outboard latch foot cover |
| 41 | - | Screws (part of 605C10) |
| 42 | 606A50 | Mounting plate |

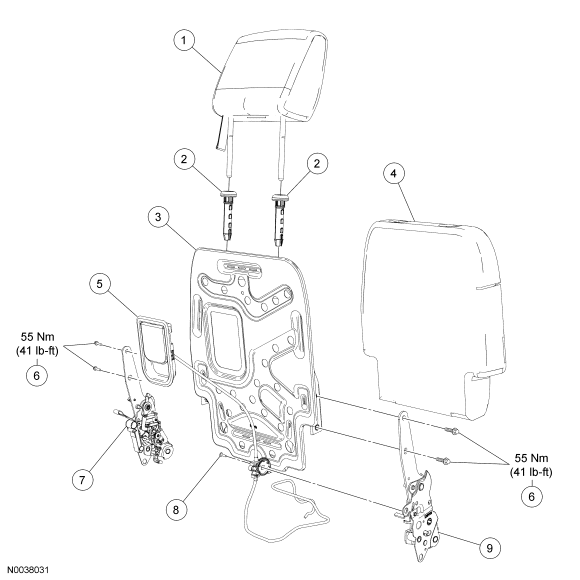

| Item | Part Number | Description |
|---|---|---|
| 1 | 611A09 | Head restraint |
| 2 | 610A16 | Head restraint guides |
| 3 | 613A39 | Backrest frame |
| 4 | 66601/66801 | Backrest trim cover/backrest foam pad |
| 5 | 601L60 | Kneeling mechanism release handle and cable |
| 6 | - | Recliner-to-backrest frame bolts (part of 605C10) |
| 7 | 61383 | Outboard recliner |
| 8 | - | Screw (part of 605C10) |
| 9 | 61383 | Inboard recliner |
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Screw (part of 605C10) |
| 2 | 62419 | Recliner handle |
| 3 | 61349 | Outboard recliner outer cover |
| 4 | 61383 | Outboard recliner |
| 5 | - | Outboard recliner-to-cushion frame bolts (part of 605C10) |
| 6 | 601L60 | Cable assembly |
| 7 | 61349 | Outboard recliner inner cover |
| 8 | 63805/63841 | Cushion trim cover/cushion foam pad |
| 9 | - | Cushion frame-to-kneeling mechanism bolts (part of 605C10) |
| 10 | - | Screws (2 required) (part of 605C10) |
| 11 | - | Cushion frame-to-latch feet assembly bolts (part of 605C10) |
| 12 | 601L60 | Kneeling mechanism release handle and cable |
| 13 | 63161 | Cushion frame |
| 14 | - | Screws (part of 605C10) |
| 15 | 61348 | Inboard recliner inner cover |
| 16 | - | Screw (part of 605C10) |
| 17 | 61383 | Inboard recliner |
| 18 | 611C73 | Safety belt buckle |
| 19 | 61348 | Inboard recliner outer cover |
| 20 | 624B75 | Shock |
| 21 | 61383 | Recliner release shaft |
| 22 | - | Inboard recliner-to-cushion frame bolt (part of 605C10) |
| 23 | - | Inboard recliner and safety belt buckle-to-cushion frame bolt (part of 605C10) |
| 24 | 61349 | Kneeling mechanism outboard leg outer cover |
| 25 | 61349 | Kneeling mechanism outboard leg inner cover |
| 26 | - | Screws (part of 605C10) |
| 27 | 81348 | Kneeling mechanism inboard leg inner cover |
| 28 | - | Latch feet retracting link-to-kneeling mechanism bolt (part of 605C10) |
| 29 | 61383 | Kneeling mechanism |
| 30 | 81348 | Kneeling mechanism inboard leg outer cover |
| 31 | - | Kneeling mechanism-to-mounting plate nuts (2 required) (part of 605C10) |
| 32 | - | Spacer |
| 33 | 61383 | Latch feet retracting link |
| 34 | - | Screws (part of 605C10) |
| 35 | - | Latch feet retracting link-to-latch feet assembly bolt (part of 605C10) |
| 36 | - | Screws (part of 605C10) |
| 37 | - | Latch feet release bar |
| 38 | 61383 | Latch feet assembly |
| 39 | 61349 | Outboard latch foot cover |
| 40 | 61348 | Inboard latch foot cover |
| 41 | - | Screws (part of 605C10) |
| 42 | 606A51 | Mounting plate |
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint |
| 2 | 610A16 | Head restraint sleeves |
| 3 | 66601 | Backrest trim cover |
| 4 | 66801 | Backrest foam pad |
| 5 | 613A39 | Backrest frame |
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Upper latch bolts (part of 605C10) |
| 2 | - | Upper latch bolts (part of 605C10) |
| 3 | - | Release handle screw (part of 605C10) |
| 4 | 62419 | Release handle |
| 5 | 56906-S | Latch cover screws |
| 6 | 61349 | Latch covers (2 required) |
| 7 | 56906-S | Latch cover screws |
| 8 | 61349 | Latch covers |
| 9 | 63805 | Cushion trim cover |
| 10 | 63841 | Cushion foam pad |
| 11 | 56906-S | Lower latch cover screw |
| 12 | 56906-S | Lower latch cover screw |
| 13 | 61349 | Lower latch covers |
| 14 | - | Lower latch bolts (part of 605C10) |
| 15 | - | Lower latch bolts (part of 605C10) |
| 16 | 61383 | Latch |
| 17 | - | Outboard lower latch nuts (part of 605C10) |
| 18 | 61383 | Latch pivot |
| 19 | 7801L60 | Riser attachment cable |
| 20 | 61332 | Torsion rod |
| 21 | 63844 | Cushion pad support |
| 22 | - | Front spring hinge bolts (part of 605C10) |
| 23 | 605A76 | Pivot springs |
| 24 | 631B79 | Seat cushion frame |
| 25 | 600A87 | Floor riser |
Fig 7: Explorer/Mountaineer Early and Late Production and Explorer Sport TRAC Early Production, 60 Percent Bench, Backrest

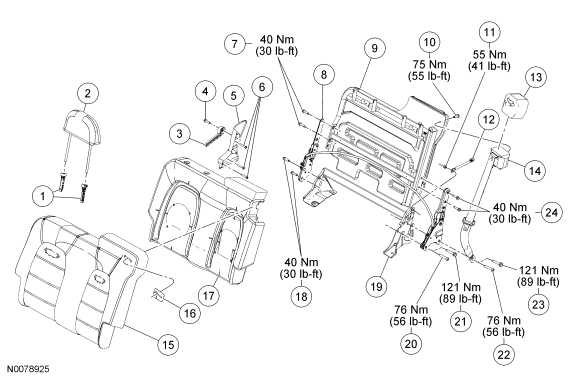

| Item | Part Number | Description |
|---|---|---|
| 1 | 610A16 | Head restraint sleeves |
| 2 | 611A08 | Head restraint |
| 3 | 851282 | Release handle |
| 4 | 851334 | Release handle screw |
| 5 | 851260 | Outboard latch cover |
| 6 | 851334 | Latch cover screws |
| 7 | - | Outboard latch-to-backrest frame bolts (part of 605C10) |
| 8 | 61382 | Latch assembly (inboard, outboard and cable) |
| 9 | 613A38 | Backrest frame |
| 10 | N807750-S | Safety belt retractor bolt |
| 11 | - | Seat tether-to-riser frame nut (late production Explorer/Mountaineer) |
| 12 | - | Seat tether (late production Explorer/Mountaineer) |
| 13 | 613C46 | Safety belt retractor cover |
| 14 | 611B64 | Safety belt retractor |
| 15 | 66601 | Backrest trim cover |
| 16 | 610D72 | Safety belt guide cover |
| 17 | 66800 | Backrest foam pad |
| 18 | W505237-S | Outboard latch-to-riser frame bolts |
| 19 | 606A50 | Riser frame |
| 20 | - | Inboard latch-to-riser frame front bolt (early production with Torx® head) (part of 605C10) |
| 21 | - | Inboard latch-to-riser frame front bolt (late production with hex head) |
| 22 | - | Safety belt anchor bolt (early production with Torx® head) (part of 605C10) |
| 23 | - | Safety belt anchor bolt (late production with hex head) |
| 24 | - | Inboard latch-to-backrest frame bolts (part of 605C10) |
| Item | Part Number | Description |
|---|---|---|
| 1 | 610D72 | Safety belt guide cover |
| 2 | 66601 | Backrest trim cover |
| 3 | 66800 | Backrest foam pad |
| 4 | 851282 | Release handle |
| 5 | - | Release handle screw (part of 605C10) |
| 6 | 61348 | Outboard latch cover |
| 7 | W505273 | Outboard latch-to-backrest frame bolts |
| 8 | 611A08 | Head restraint |
| 9 | 62648 | Latch assembly (outboard, upper and cable) |
| 10 | 610A16 | Head restraint sleeves |
| 11 | 613A38 | Backrest frame |
| 12 | 638A74 | Inner latch cover |
| 13 | - | Upper latch cover screw (part of 605C10) |
| 14 | - | Upper latch-to-backrest frame bolts (part of 605C10) |
| 15 | - | Backrest support panel (part of 613A38) |
| 16 | - | Backrest support panel screw (part of 613A38) |
| 17 | 638A74 | Upper latch cover |
| 18 | - | Upper latch cover screw (part of 605C10) |
| 19 | W505237 | Outboard latch-to-riser frame bolts |
| 20 | - | Latch cover screw |
| 21 | - | Inboard latch-to-riser frame front bolt (early production with Torx® head) |
| 22 | - | Inboard latch-to-riser frame front bolt (late production with hex head) |
| 23 | 606A50 | Riser frame |
| 24 | - | Inboard latch |
| 25 | N807750 | Safety belt retractor bolt |
| 26 | W505237 | Inboard latch-to-backrest frame bolts |
| 27 | 613C46 | Safety belt retractor cover |
| 28 | 611B64 | Safety belt retractor |
| 29 | - | Safety belt anchor bolt (early production with Torx® head) |
| 30 | - | Safety belt anchor bolt (late production with hex head) |
| Item | Part Number | Description |
|---|---|---|
| 1 | 854182 | Latch cover screws |
| 2 | 820007 | Latch cover |
| 3 | 854182 | Latch cover screws |
| 4 | 851262 | Latch cover |
| 5 | - | Upper pivot latch bolt (part of 605C10) |
| 6 | - | Upper pivot latch bolt (part of 605C10) |
| 7 | 63805 | Cushion trim cover |
| 8 | 63840 | Cushion foam pad |
| 9 | 63844 | Cushion pad support |
| 10 | 63844 | Cushion pad support |
| 11 | 631B79 | Seat cushion frame |

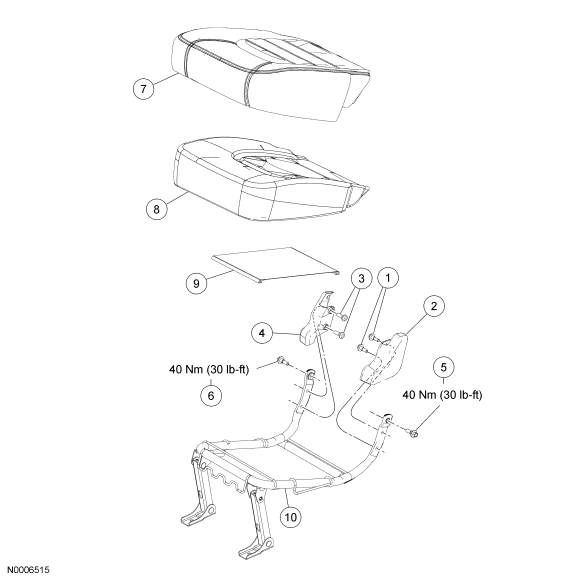

| Item | Part Number | Description |
|---|---|---|
| 1 | 851334 | Release handle screw |
| 2 | 820015 | Release handle |
| 3 | 851334 | Latch cover screws |
| 4 | 820009 | Outboard latch cover |
| 5 | 611C73 | Safety belt buckle and bolt |
| 6 | 611A08 | Head restraint |
| 7 | 610A16 | Head restraint sleeves |
| 8 | 66601 | Backrest trim cover |
| 9 | 66801 | Backrest foam pad |
| 10 | W505237-S | Upper latch bolts |
| 11 | W505237-S | Upper latch bolts |
| 12 | 613A39 | Backrest frame |
| 13 | W505237-S | Lower latch bolts |
| 14 | W505237-S | Lower latch bolts |
| 15 | 61383 | Latch assembly |
| 16 | 600A87 | Riser frame |
| Item | Part Number | Description |
|---|---|---|
| 1 | 854182 | Latch cover screws |
| 2 | 820011 | Latch cover |
| 3 | 854182 | Latch cover screws |
| 4 | 851264 | Latch cover |
| 5 | - | Upper pivot latch bolt (part of 605C10) |
| 6 | - | Upper pivot latch bolt (part of 605C10) |
| 7 | 63805 | Cushion trim cover |
| 8 | 63841 | Cushion foam pad |
| 9 | 63844 | Cushion pad support |
| 10 | 631B79 | Seat cushion frame |
- For additional information, refer to the procedures in this article.
