Safety Belt Buckle - Third Row: Notes

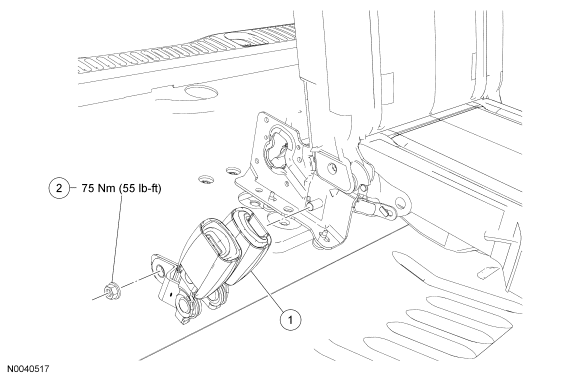

Fig 1: Exploded View Of Safety Belt Buckle With Torque Specification - Third Row
GF0026591Courtesy of FORD MOTOR CO.
Item Part Number Description
1 613048 Dual safety belt buckle
2 - Safety belt buckle nut
