Trailer Brake Control Module Connector - C239

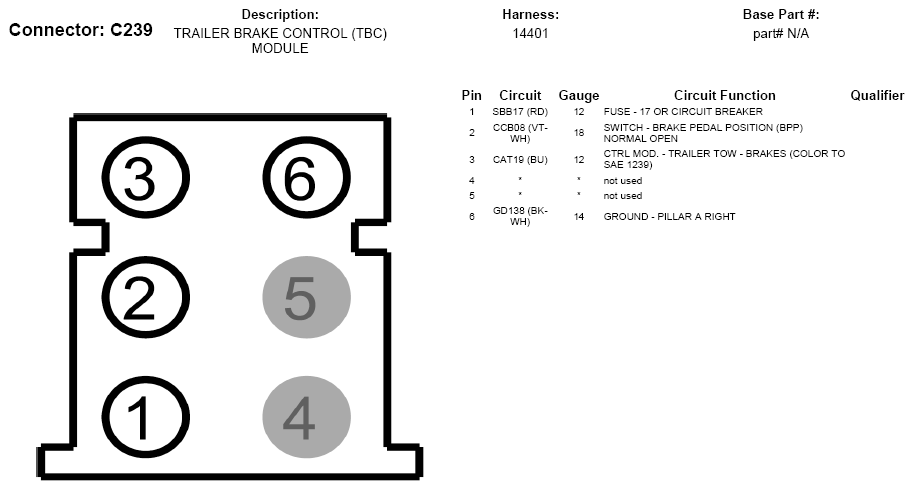

Fig 1: Trailer Brake Control Module Connector End View (C239)

G05787763

Courtesy of FORD MOTOR CO.
