Fuel Pump Driver Module Control Connector - C4033

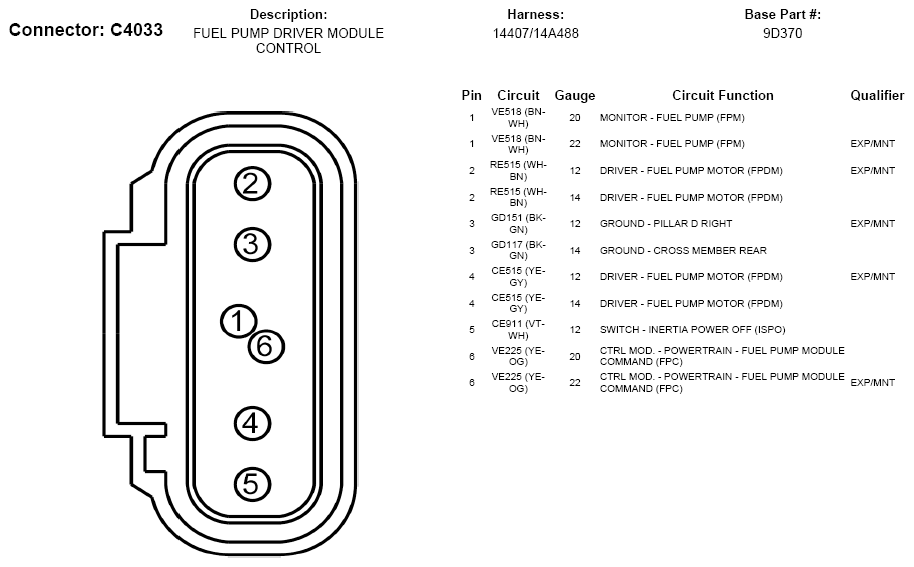

Fig 1: Fuel Pump Driver Module Control Connector End View (C4033)

G05788037

Courtesy of FORD MOTOR CO.
