Restraints Control Module (RCM): Notes

Special Tools

Illustration Tool Name Tool Number
GF0000049Courtesy of FORD MOTOR CO.
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

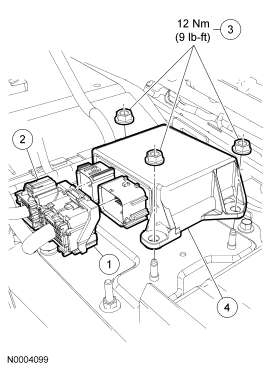

Fig 1: Exploded View Of Restraints Control Module (RCM) With Torque Specification
GF0026713Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Large restraints control module (RCM) electrical connector (part of 14A488)
2 - Small RCM electrical connector (part of 14401)
3 W701838 RCM nuts
4 14B321 RCM
