Power Steering Pump To Steering Gear Pressure Line: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Installer Set, Teflon® Seal	211-D027 (D90P-3517-A) or equivalent

Material

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

NOTE: 4.6L Engine Shown, 4.0L Engine Similar.

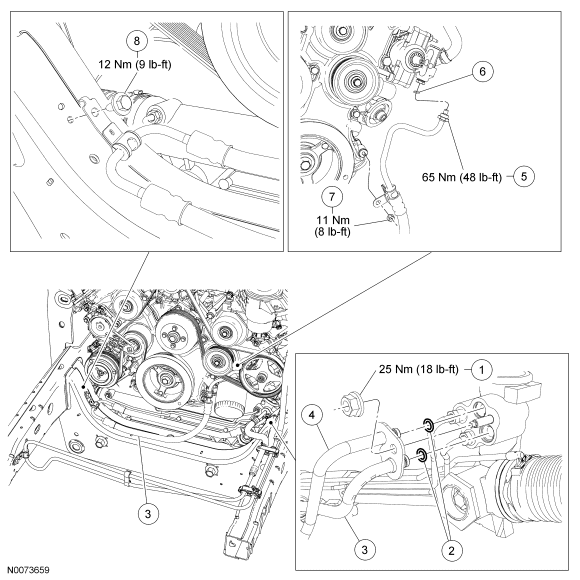

Fig 1: Power Steering Pump To Steering Gear Pressure Line With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520413-S	Steering line clamp plate nut
2	N803257	O-ring seals (2 required)
3	3A719	Pressure line
4	3D746	Power steering fluid cooler
5	-	Pressure line-to-pump fitting (part of 3A719)
6	388898	Teflon® seal
7	N805320/ W503924	Pressure line bracket-to-engine nut/bolt (4.6L engine/4.0L engine)
8	W710617	Pressure line bracket-to-crossmember bolt
