Transmission Control Switch Connector - C2135

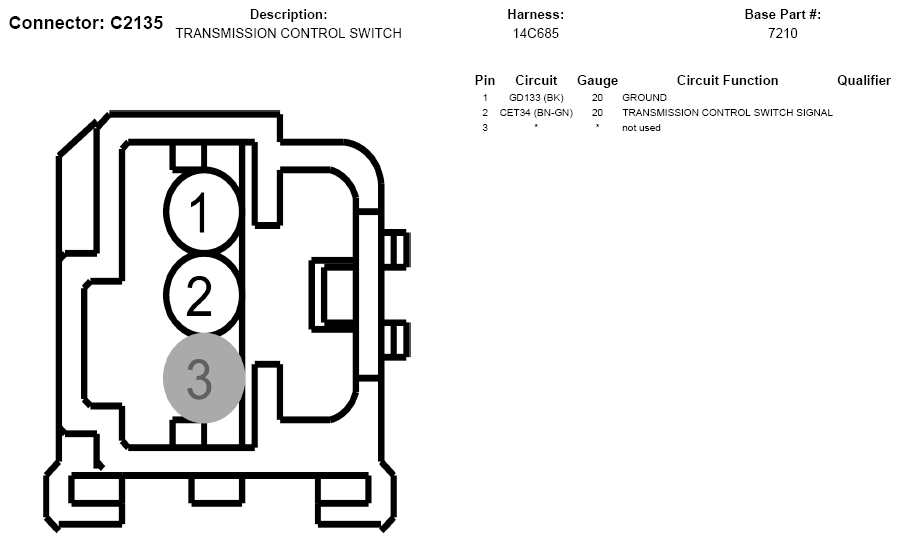

Fig 1: Transmission Control Switch Connector End View (C2135)

G05746729

Courtesy of FORD MOTOR CO.
