Rear Entertainment Module Connector - C949

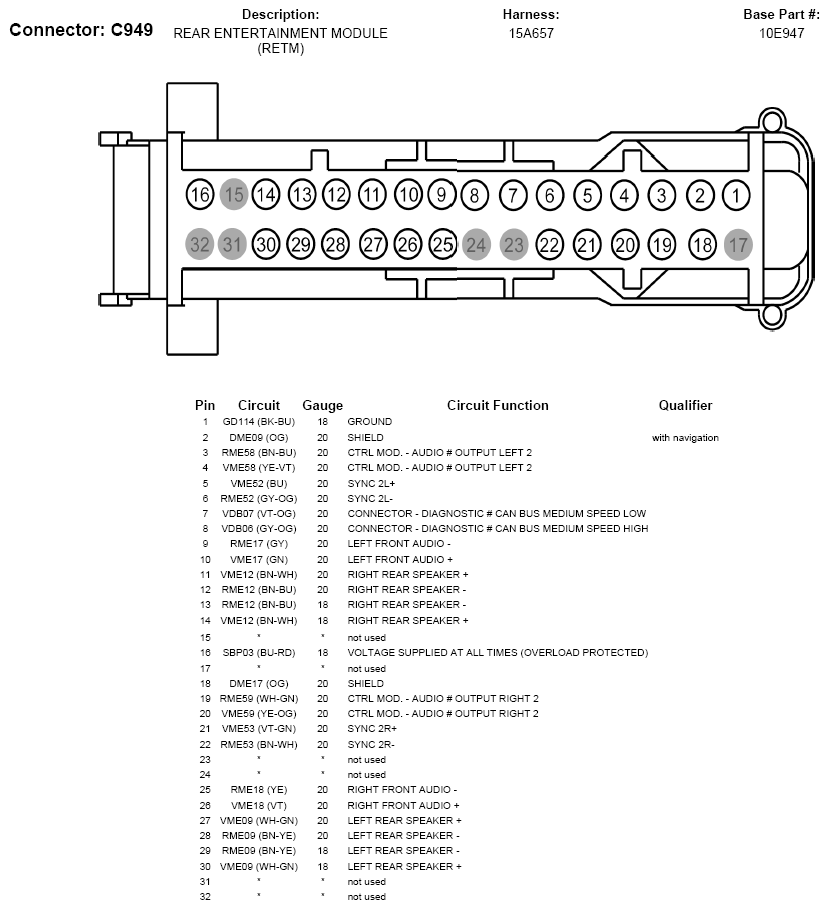

Fig 1: Rear Entertainment Module Connector End View (C949)

G05746677

Courtesy of FORD MOTOR CO.
