Wheel Speed Sensor - Rear: Notes

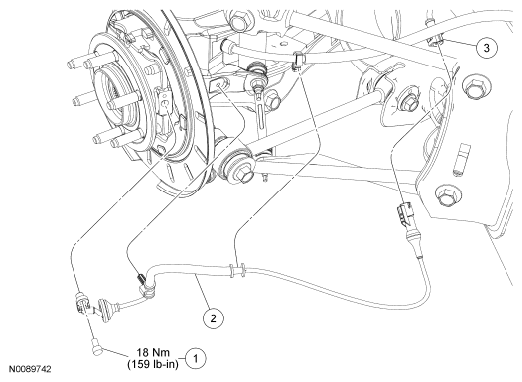

Fig 1: Wheel Speed Sensor Replacement Components With Torque Specifications -- Rear
G06125938Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Rear wheel speed sensor bolt (part of 2C190)
2 2C190 Rear wheel speed sensor
3 - Body harness electrical connector (part of 14A464)
