Mechatronic assembly

NOTE: The only solenoid that is serviceable in the mechatronic assembly is Shift Solenoid E (SSE). If the mechatronic assembly is being removed due to a faulty SSE , follow the specific steps in this procedure to install a new SSE . If the mechatronic assembly is being removed due to a faulty solenoid other than SSE , a new mechatronic assembly must be installed.

NOTE: If a new or existing mechatronic assembly is installed, the Transmission Control Module (TCM) will need to be programed with the latest calibration.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

NOTE: Do not pull on the wire harness to disconnect the connector or damage to the connector will occur.

Fig 1: Locating Transmission Vehicle Harness Connector

Courtesy of FORD MOTOR CO.

Disconnect the transmission vehicle harness connector by twisting the outer shell and pulling back on the connector.
Remove the transmission fluid fill plug transmission fluid level indicator assembly located on the passenger side front portion of the transmission case. Removal of the transmission fluid fill plug will relieve any vacuum that might have built up in the transmission. This will aid in allowing the transmission fluid pan to be easily removed when the bolts are removed.

Fig 2: Locating Transmission Fluid Fill Plug Transmission Fluid Level Indicator Assembly
Courtesy of FORD MOTOR CO.
Remove the transmission fluid pan and allow the transmission fluid to drain.

Fig 3: Locating Transmission Fluid Pan Bolts
Courtesy of FORD MOTOR CO.
Remove the transmission fluid pan gasket.

Fig 4: Locating Transmission Fluid Pan Gasket
Courtesy of FORD MOTOR CO.

NOTE: The transmission fluid filter may be reused if no excessive contamination is indicated.

Fig 5: Locating Transmission Fluid Filter

Courtesy of FORD MOTOR CO.

Remove and discard the transmission fluid filter.
Pull the release tab and pull down on the transmission bulkhead electrical connector retainer.

Fig 6: Locating Release Tab
Courtesy of FORD MOTOR CO.

NOTE: Do not touch the electrical connector pins or the exposed solenoid tabs on the transmission bulkhead electrical connector. Electrostatic discharge may occur and may cause damage to the mechatronic unit.

Fig 7: Locating Release Tab And Outer Shell Of Transmission Bulkhead Electrical Connector

Courtesy of FORD MOTOR CO.

With the release tab down, pull the outer shell of the transmission bulkhead electrical connector out of the mechatronic assembly.

Fig 8: Pulling Transmission Bulkhead Electrical Connector Out Of Transmission Case

Courtesy of FORD MOTOR CO.

Pull the transmission bulkhead electrical connector out of the transmission case.

NOTE: During removal of the mechatronic assembly, the thermal bypass valve will fall out of the transmission case. Damage to the valve will occur if the valve falls out.

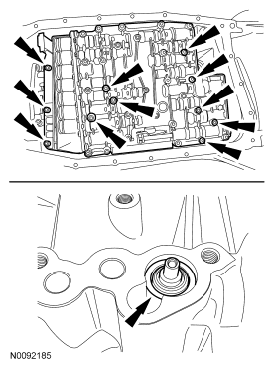

Fig 9: Locating Mechatronic Assembly Bolts

Courtesy of FORD MOTOR CO.

Remove the 11 bolts from the mechatronic assembly and remove the mechatronic assembly and the bypass valve.
Shift Solenoid E (SSE)
Remove the 6 long bolts from the TCM unit.

Fig 10: Locating TCM Unit Long Bolts
Courtesy of FORD MOTOR CO.
Carefully separate the TCM from the mechatronic assembly.
1. TCM
2. Mechatronic assembly

  Fig 11: Identifying TCM And Mechatronic Assembly
  Courtesy of FORD MOTOR CO.
Remove the 8 solenoid bracket bolts and the solenoid bracket.

Fig 12: Locating Solenoid Bracket Bolts
Courtesy of FORD MOTOR CO.
Remove the Shift Solenoid E (SSE).

Fig 13: Locating Shift Solenoid E
Courtesy of FORD MOTOR CO.
