Left Rear Height Sensor Connector - C4092

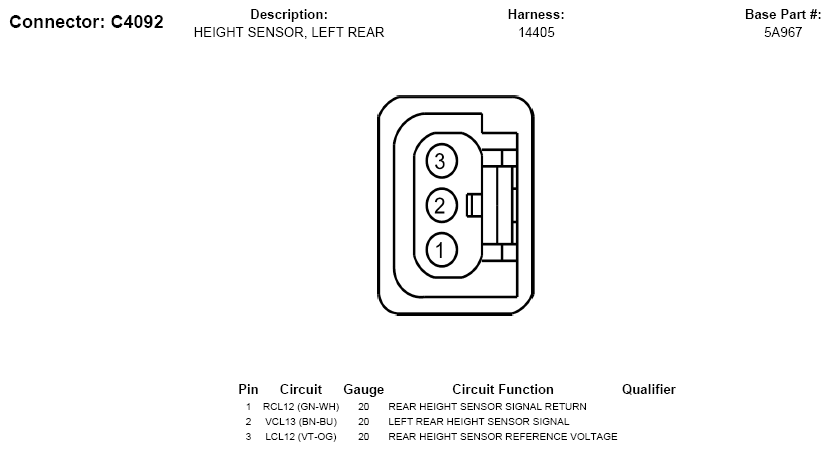

Fig 1: Left Rear Height Sensor Connector End View (C4092)

G05746836

Courtesy of FORD MOTOR CO.
