Transfer Case Vent: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Inspect the condition of the PTU vent hole.
    • By hand, insert the new PTU vent into the PTU cover and measure the distance between the PTU cover and the vent as indicated.
    • If the measurement is less than specification, install a new PTU.
      Fig 1: Measuring Distance Between PTU Cover And Vent
      G06098392Courtesy of FORD MOTOR CO.
    2. NOTE: Do not apply silicone sealant to the Power Transfer Unit (PTU) vent hole as it may cause damage to the PTU internal components.
    Fig 2: Applying Bead Of Silicone Gasket And Sealant To Transfer Case Vent
    G06098393Courtesy of FORD MOTOR CO.
  2. Apply a bead of silicone gasket and sealant to the PTU vent where indicated.
    3. NOTE: Drive the PTU vent in until the special tool bottoms out against the PTU rear cover boss.
    Fig 3: Installing Transfer Case Vent
    G06098394Courtesy of FORD MOTOR CO.
  3. Using the Vent Tube Installer, install the PTU vent.
  4. Measure the depth of the PTU vent.
    • If the vent is too high, repeat Step  3.

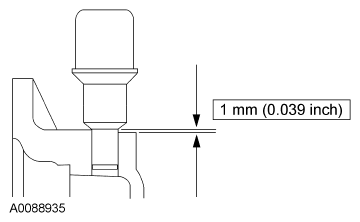

      Fig 4: Measuring Depth Of PTU Vent
      G06098395Courtesy of FORD MOTOR CO.
    5. NOTE: Make sure the Power Transfer Unit (PTU) vent boot is correctly aligned or damage to the components may occur.
    NOTE: Use a soapy water solution to lubricate the PTU breather boot.
    Fig 5: Identifying PTU Vent Boot
    G06098396Courtesy of FORD MOTOR CO.
  5. Install the PTU vent boot.
  6. Install the PTU. For additional information, refer to POWER TRANSFER UNIT (PTU) .
